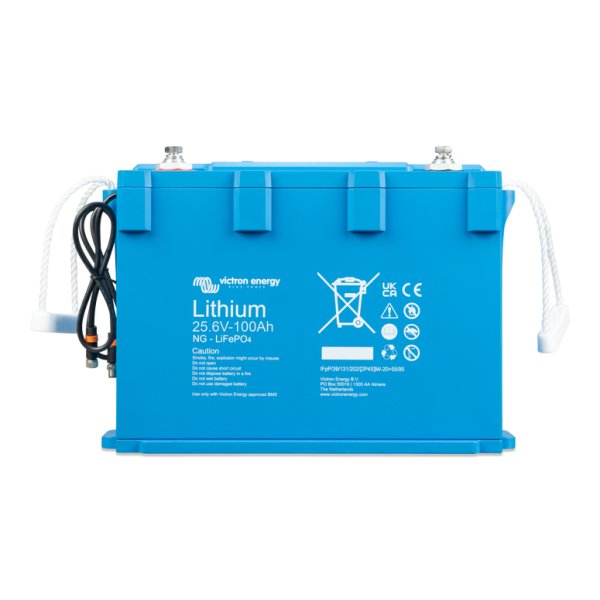

Victron LiFePO4 Battery 25.6V/100Ah NG - BAT524110620

SKU: CN VIBAT524110620

€ 1.583,14

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron BAT524110620 is a 25.6V/100Ah (2560Wh) Lithium Iron Phosphate (LiFePO₄) battery from the NG series. It features IP65 protection, integrated cell monitoring, and must be paired with the Lynx Smart BMS NG for full Bluetooth and GX system support. With 200A peak current and over 2500 cycles at 80% DoD, it’s ideal for advanced 24V power systems in harsh conditions.

Description
Ask a Question

Victron Energy BAT524110620 Lithium NG Smart Battery 25.6V 100Ah (2560Wh, IP65)

The Victron BAT524110620 is a next-generation 25.6V lithium iron phosphate (LiFePO₄) battery offering 100Ah of storage (2560Wh) with a compact footprint and rugged IP65 enclosure. This smart battery integrates cell monitoring and balancing, and requires a Victron Lynx Smart BMS NG for operation, communication, and remote diagnostics via VictronConnect or a GX device.

Key Features:
- Chemistry: Lithium Iron Phosphate (LiFePO₄)
- Nominal Voltage: 25.6 V
- Capacity: 100 Ah
- Energy: 2560 Wh
- Cycle Life: 2500 @ 80% DoD, 5000 @ 50% DoD
- IP Rating: IP65 (dust & water jet protected)
- Bluetooth: Via Lynx Smart BMS NG
- Mounting: Upright or on side (not terminals-down)
Electrical Performance:
- Max Continuous Discharge: 100 A
- Max Pulse Discharge (10s): 200 A
- End of Discharge Voltage: 22.4 V
- Max Continuous Charge: 100 A
- Pulse Charge (10s): 200 A
- Charge Voltage: 28.0 – 28.8 V (recommended: 28.4 V)
- Float Voltage: 27.0 V
- Internal Resistance: ~1 mΩ
- Efficiency: 92% (round-trip)
Mechanical & Environmental:
- Dimensions (HxWxD): 235 × 341 × 160 mm
- Weight: 19 kg
- Terminals: M8 threaded inserts
- Interface: M8 circular connectors, 50 cm cable (included)
- Operating Temp (Discharge): –20°C to +50°C
- Operating Temp (Charge): +5°C to +50°C
- Storage Temp: –45°C to +70°C
- Humidity: Max 95% (non-condensing)
- Self-Discharge: ≤3%/month
System Integration:
- Required BMS: Lynx Smart BMS NG 500A / 1000A
- Monitoring: VictronConnect App, GX device, VRM Portal
- Firmware Updates: Automatic via BMS
- Max Batteries per BMS: 50 units (up to 384 kWh total @ 25.6V)
Compliance & Certifications:
- Safety: UL1973, UL9540A, IEC62619 (pending)
- EMC: EN 61000-6-2 / 6-3
- Automotive (pending): ECE R10-6
- Performance: IEC 62620 (pending)
The Victron BAT524110620 delivers reliable 25.6V energy storage with intelligent monitoring and rugged protection. Ideal for industrial-grade mobile, off-grid, and renewable systems where compact size and durability are critical.
