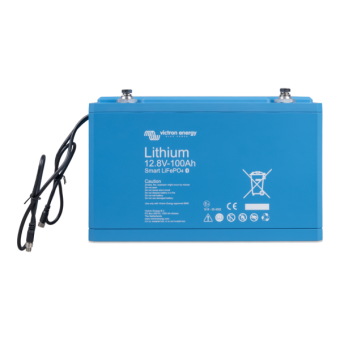

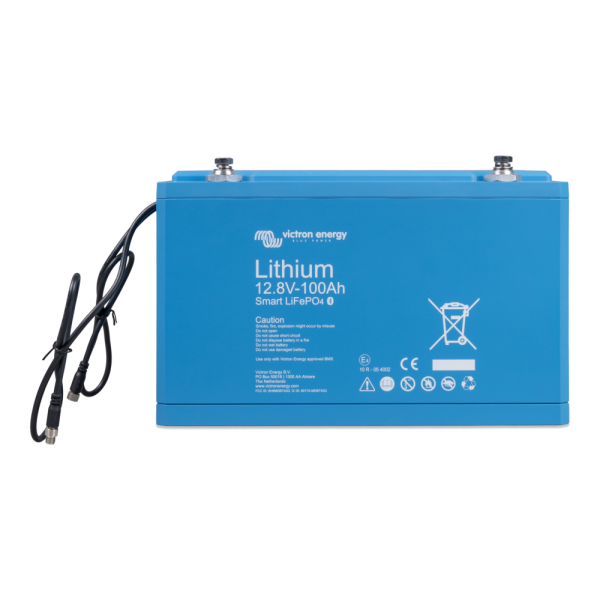

Victron Energy BAT512110610 Smart LiFePO₄ 12.8V 100Ah Bluetooth Battery

The Victron BAT512110610 is a high-performance 12.8V lithium iron phosphate (LiFePO₄) battery with a 100Ah nominal capacity and smart Bluetooth functionality. Designed for demanding energy storage applications, this battery delivers superior cycle life, compact size, and full compatibility with Victron's Battery Management Systems (BMS).

Key Features:

• Battery Type: Lithium Iron Phosphate (LiFePO₄)
• Nominal Voltage: 12.8 V
• Nominal Capacity: 100 Ah (1280 Wh at 25°C)
• Cycle Life: 2500 cycles at 80% DoD
• Integrated Bluetooth: Live monitoring via VictronConnect app
• Integrated cell balancing and monitoring
• Fully compatible with Victron BMS

Electrical Specifications:

• Max Continuous Discharge Current: 200 A
• Recommended Continuous Discharge: ≤100 A
• End of Discharge Voltage: 11.2 V
• Max Charge Current: 200 A
• Recommended Charge Current: ≤50 A
• Charge Voltage: 14.0 – 14.4 V (recommended: 14.2 V)
• Float Voltage: 13.5 V
• Round-Trip Efficiency: 92%
• Internal Resistance: ~0.8 mΩ

Mechanical & Environmental:

• Dimensions (HxWxD): 197 × 321 × 152 mm
• Weight: 14 kg
• Mounting: Upright or side-mounted (not terminals-down)
• Operating Temperature (Discharge): –20°C to +50°C
• Operating Temperature (Charge): +5°C to +50°C
• Storage Temperature: –45°C to +70°C
• Humidity (non-condensing): Max 95%
• Protection Class: IP22

Interface & Connectivity:

• BMS Communication: 50 cm cable with M8 circular connectors (male + female)
• Power Terminals: M8 threaded inserts
• Bluetooth Monitoring: VictronConnect app (cell voltages, temperature, alarms)

Certifications:

• Cells: UL1973, IEC62619:2017, UL9540A
• Battery: IEC62619:2017, IEC62620:2014
• EMC: EN-IEC 61000-6-3, EN 55014-1
• Automotive: ECE R10-6

With smart monitoring, excellent cycle life, and seamless BMS integration, the Victron BAT512110610 battery is a reliable and efficient energy storage choice for 12V applications in solar, marine, off-grid, and mobile systems.
