Victron 12V/38Ah AGM Deep Cycle Battery - BAT412350084

SKU: CN VIBAT412350084

€ 158,20

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron BAT412350084 is a 12V AGM deep cycle battery offering 38Ah capacity and robust flat-plate construction in a compact casing (197 × 165 × 170 mm). Weighing 12.5 kg, this battery is designed for deep discharge applications where long service life, low maintenance, and consistent output are required. It is a versatile choice for off-grid energy systems, UPS backups, and portable DC applications.

Description
Ask a Question

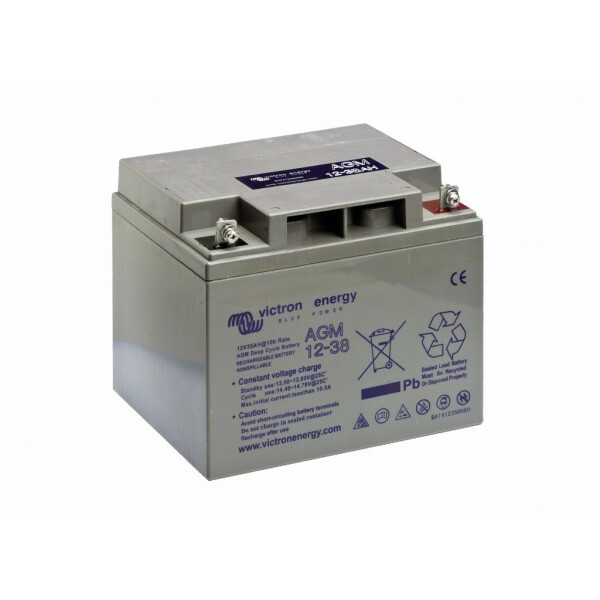

Victron Energy BAT412350084 12V 38Ah AGM Deep Cycle Battery

The Victron Energy BAT412350084 is a high-performance 12V AGM deep cycle battery engineered for demanding applications. With a 38Ah capacity and sealed VRLA design, it is ideal for long-term cyclic use in mobile, backup, and renewable energy systems. This battery features AGM (Absorbent Glass Mat) technology that provides excellent deep discharge recovery, high instantaneous current handling, and superior safety with zero maintenance requirements.

Key Features:
- Voltage: 12V
- Capacity: 38Ah (20hr rate at 25°C)
- Technology: Sealed AGM, flat-plate design
- Maintenance-free: No electrolyte refilling required
- High reliability: Excellent recovery from deep discharges
- Low self-discharge: < 2% per month at 20°C
- Compact size: 197 × 165 × 170 mm
- Weight: 12.5 kg
Recommended Applications:
- Backup power systems (UPS)
- Mobile and marine energy storage
- DC-powered industrial equipment
- Solar-powered systems and off-grid setups
- Security and monitoring installations
Charging Parameters (12V system):

Stage Voltage Range

Absorption 14.2 – 14.6 V

Float 13.5 – 13.8 V

Storage 13.2 – 13.5 V

Performance Characteristics:
- Float service life: 7–10 years at 20°C
- Cycle life:
  - ~400 cycles at 80% depth of discharge
  - ~600 cycles at 50% depth of discharge
  - ~1500 cycles at 30% depth of discharge
- Temperature range: Optimal performance at 20°C
- Charging current: Should not exceed 0.2C (7.6A)
Why Choose Victron AGM Technology?

Victron AGM batteries offer fast energy delivery, stable operation in varied environmental conditions, and superior construction quality. The sealed casing ensures safe use in closed environments,
Looking for a different Victron Marine Batteries? Explore our full Victron AGM Batteries product range.
Documents

Victron Energy Gel and AGM Batteries Size: 377,9 Kb
