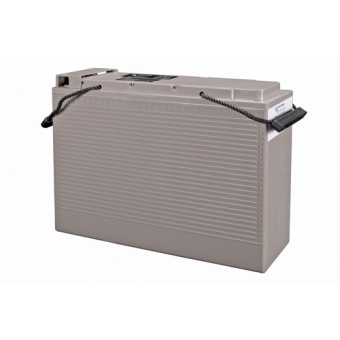

Victron 12V/115Ah AGM Telecom Battery (M8) - BAT412105164

SKU: CN VIBAT412105164

€ 371,38

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron BAT412105164 is a 12V AGM Telecom battery with 115Ah capacity, designed for space-constrained, high-reliability backup systems. It features M8 terminals and compact dimensions of 395 × 110 × 293 mm while delivering 1000A CCA and 200 minutes reserve capacity. With a float life of up to 12 years and 500+ deep cycles at 80% DoD, it is ideal for telecom racks, marine, vehicle power systems, and other critical backup applications.

Description
Ask a Question

Victron Energy BAT412105164 12V 115Ah AGM Telecom Battery (M8 Terminals)

The Victron BAT412105164 is a compact, front-access 12V AGM Telecom battery engineered for high-performance backup and cyclic applications. Designed for telecom rack systems, marine, and vehicle installations, it offers excellent space efficiency and long design life. With AGM technology and a sealed VRLA format, it provides safe, reliable power with minimal maintenance.

Key Features:
- Voltage: 12V
- Capacity: 115Ah (C20, at 10.5V, 25°C)
- Cold Cranking Amps (CCA): 1000A @ 0°F
- DIN Cold Start Current: 600A
- Short Circuit Current: 3500A
- Reserve Capacity: 200 minutes @ 80°F
- Terminal Type: M8 bolt terminals
- Technology: AGM (Absorbent Glass Mat), sealed VRLA
- Dimensions: 395 × 110 × 293 mm
- Weight: 35 kg
- Maintenance: No refilling required; fully sealed
Design Life and Cycle Performance:
- Float design life: Up to 12 years @ 20°C
- ~500 cycles @ 80% DoD
- ~750 cycles @ 50% DoD
- ~1800 cycles @ 30% DoD
Charging Recommendations (at 20°C):

Charge Stage Voltage

Absorption 14.4 – 14.7 V

Float 13.6 – 13.8 V

Storage 13.2 V

Ideal Applications:
- Telecommunication rack systems
- Industrial UPS and DC backup
- Marine navigation or communications gear
- Vehicle and mobile power systems with limited space
Additional Technical Notes:
- Self-discharge rate: < 2% per month at 20°C
- Internal resistance: Optimized for high current draw and rapid recharge
- Shelf life: Up to 1 year at 20°C without recharge
- Temperature compensation: –24 mV/°C for 12V battery blocks
The Victron BAT412105164 is purpose-built for dense rackmount and mobile systems where long-term reliability, safety, and cyclic resilience are essential. With a long float life and exceptional high-rate performance, it is a go-to solution for telecom, marine, and critical infrastructure.
Documents

Victron Energy Telecom Batteries Size: 79 Kb
