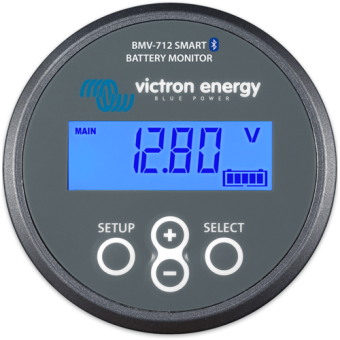

Victron Energy BAM030712000 - Battery Monitor BMV-712 Smart

Article BB-BAM030712000

€ 178,46

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron Energy BMV-712 Smart Battery Monitor is a comprehensive, high-precision solution for tracking essential battery data, such as voltage, current, amp-hours, state of charge, and remaining runtime. Designed for a range of applications—including marine, RV, off-grid, and industrial power setups—the BMV-712 provides real-time data to optimize battery health and prolong lifespan. Equipped with Bluetooth, this monitor connects to the VictronConnect app, allowing users to access, monitor, and configure settings directly from their mobile devices. It supports secondary battery voltage monitoring, provides data on midpoint voltage, and can measure temperature with an optional sensor, making it adaptable for complex power systems. The monitor includes a 500A/50mV shunt for accurate current measurement, along with programmable visual and audible alarms to prevent over-discharge or other battery-related issues.

Description
Ask a Question

Victron Energy BAM030712000 - Battery Monitor BMV-712 Smart

Overview

The Victron Energy BMV-712 Smart Battery Monitor is an advanced monitoring system that provides precise tracking of your battery’s status. It monitors key metrics such as volts, amps, amp-hours, and time-to-go, offering a comprehensive view of your battery’s health. Equipped with Bluetooth, it enables real-time monitoring and configuration via the VictronConnect app on iOS and Android devices, making it ideal for managing DC systems in marine, RV, and off-grid applications.

Key Features
- Monitors volts, amps, amp-hours, state of charge, and time remaining
- Bluetooth-enabled for easy monitoring and configuration via the VictronConnect app
- Supports additional measurement for voltage of a second battery, temperature, or midpoint voltage
- Includes a 500A/50mV shunt for high-accuracy current measurement
- Visual and audible programmable alarms to ensure battery health and prevent damage
Specifications
- Model Number: BAM030712000
- Battery Voltage Range: 6.5 - 70 VDC
- Current Draw: Less than 1mA with backlight off
- Measurement Range: Battery capacity of 1 - 9999 Ah
- Temperature Range: Operating from -40°C to +50°C (-40°F to +122°F)
- Accuracy: Voltage ±0.3%, Current ±0.4%, SOC ±0.1%
- Relay Output: 60V / 1A bi-stable relay
- Connection Ports: VE.Direct communication port for integration with other Victron devices
- Dimensions: Flush mount (63mm diameter); body depth 31mm
- Protection: IP55, suitable for indoor use
Compatibility and Applications
- Compatible with 12V to 70V DC systems, ideal for marine, RV, and off-grid power management
- Works seamlessly with Victron’s Color Control GX and Venus GX for enhanced monitoring and control
Benefits
- Provides precise and comprehensive battery monitoring, optimizing system performance and battery lifespan
- Easy to install with all necessary cables and connectors included
- Bluetooth capability allows for convenient, remote access to battery data and settings via a mobile device
- Enhances safety with visual and audible alarms, preventing battery over-discharge or other issues
