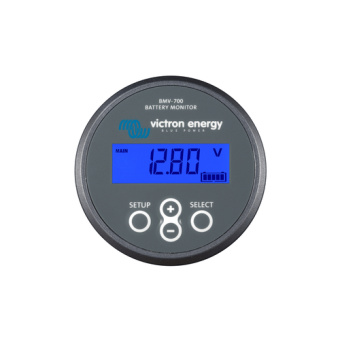

Victron Energy BAM010700000 - Battery Monitor BMV-700

Victron Energy BAM010700000 - Battery Monitor BMV-700

Key Features:

• Monitors essential battery parameters, including voltage, current, power, ampere-hours consumed, and state of charge
• Displays remaining time at current rate of discharge, providing real-time insights into battery capacity
• Comes with a high-precision 500A shunt for accurate current measurement
• Programmable visual and audible alarms to alert users to critical battery levels
• Versatile display with removable bezel, allowing for both round and square mounting options
• Includes 10-meter RJ12 communication cable, connectors, and fuse for easy installation

Specifications:

• Battery Voltage Range: 6.5 - 95V DC, suitable for 12V to 90V battery systems
• Current Measurement Range: 500A with included shunt
• Accuracy: Current measurement ±0.4%, Voltage measurement ±0.3%
• Relay Output: 60V / 1A, normally open (can be configured for custom settings)
• Power Consumption: <4 mA with backlight off
• Dimensions (Diameter x Depth): 63 mm x 31 mm; Bezel: 69 x 69 mm
• Operating Temperature: -40 to +50°C (-40 to +120°F)
• Protection Rating: IP55 (for indoor use only)

Compatibility and Application:

• Perfect for monitoring single battery banks in marine, RV, and off-grid power systems
• VE.Direct communication port enables connection to Victron devices and monitoring tools

Benefits:

• Provides precise tracking of battery health, allowing users to optimize battery usage and extend lifespan
• Real-time data and time-to-go functionality improve energy management for critical applications
• Visual and audible alarms provide early warnings, helping prevent unexpected power shortages
• Easy installation and versatile display options make it suitable for various applications and setups
• Seamless integration with Victron monitoring systems via VE.Direct enhances overall power system control
