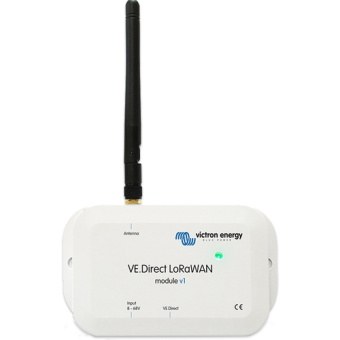

Victron VE.Direct LoRaWAN AU915-928 Module - ASS030542010

Victron Energy ASS030542010 – VE.Direct LoRaWAN AU915-928 Module

The VE.Direct LoRaWAN AU915-928 Module by Victron Energy offers a powerful remote monitoring solution for solar charge controllers, battery monitors, and inverters via the free Victron Remote Management (VRM) portal. Designed for use in Australia, New Zealand, and South America, it transmits hourly performance data over the AU915 LoRaWAN band using The Things Network (TTN) infrastructure—without subscriptions or SIM cards.

Key Features:

• Connects one VE.Direct device directly to the VRM Portal via LoRaWAN
• Free, subscription-less connectivity using public TTN gateways
• Designed for low-power, long-range operation (AU915-928 MHz)
• Compatible with BMV-700/712, VE.Direct MPPT controllers, and inverters
• Hourly updates of key system parameters; daily for secondary data
• No GX device required for operation
• Visual diagnostics through multicolor LED indicators

Technical Specifications:

Included in the Box:

• VE.Direct LoRaWAN AU915 module
• 1.5m VE.Direct cable
• RPSMA antenna
• 1.5m power cable with 3A inline fuse and M10 eyelets
• Quick-install guide

Compatible Data Sources:

• BMV Battery Monitors: Voltage, Current, Power, SoC, Alarms
• MPPT Controllers: Solar Power, Voltage, Current, Charge State, Error Codes
• Inverters: Battery Voltage, AC Output, Operating Mode, Alarms

LED Status Codes:

• Blinking Blue: Searching for LoRaWAN connection
• Blinking Green: Connected to LoRaWAN and VE.Direct device
• Blinking Yellow: Connected to LoRaWAN, no VE.Direct device found
• Solid Red: Error; device will reboot

Coverage & Setup Notes:

• Public TTN gateways recommended; you may also deploy your own multichannel gateway
• AU915 supported; not compatible with AS923 frequency
• Up to 15 km range in rural conditions; approx. 2 km in urban areas
• Supports TTN Cluster: au1 for Australia

Important Limitations:

• Not compatible with SmartShunt or Peak Power Pack
• Only one VE.Direct device per module
• Cannot be used simultaneously with GX devices
• No remote configuration or firmware update functionality

Ideal For:

• Off-grid and solar-powered monitoring setups
• Remote or rural areas with LoRaWAN coverage
• Mobile power systems in vehicles, boats, or cabins
