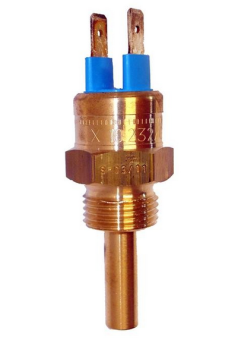

VDO X10-232-001-003 - Temperature Switch 86°C - M18

VDO X10-232-001-003 - Temperature Switch 86°C - M18

The VDO X10-232-001-003 Temperature Switch is an essential component for precise temperature monitoring in engines and industrial systems. It activates at 86°C ± 3°C and deactivates at 81°C ± 3°C, providing reliable temperature control to prevent overheating. With a robust M18 x 1.5 threaded connection, the switch ensures a secure fit and compatibility with a wide range of applications. The temperature switch is designed for long-term durability, with a maximum operating temperature of 110°C, and it features a 100W maximum switching capacity, making it ideal for use in high-performance systems. It operates within a voltage range of 6-24V DC and is built with a dual-pole insulated return to handle various temperature monitoring needs.

Key Features:

• Precise activation at 86°C ± 3°C, deactivates at 81°C ± 3°C for optimal temperature regulation
• Maximum operating temperature of 110°C, making it suitable for a wide range of engine and industrial applications
• Reliable contact closure as temperature rises, ensuring accurate monitoring of system temperature
• Designed with a 2-pole insulated return for secure and stable electrical connections
• Switching capacity of up to 100W, capable of handling demanding electrical loads
• Compatible with systems operating on 6-24 V DC for flexible integration in various setups
• AMP Male 6.3 x 0.8 mm connectors for secure and efficient connection to the system
• Threaded M18 x 1.5 connection ensures a universal fit and easy installation
• Contact response is slow to prevent electrical arcing and ensure smooth operation

Specifications:

• Model: VDO X10-232-001-003
• Temperature Switchpoint (ON): 86°C ± 3°C
• Temperature Switchpoint (OFF): 81°C ± 3°C
• Maximum Operating Temperature: 110°C
• Thread: M18 x 1.5 Male Tapered
• Switch Element Length + Thread (L): 35.5 mm
• Sensor Diameter: 8 mm
• Electrical Features:
• Operating Voltage: 6 - 24 V DC
• Switch Function: Contact closes when temperature exceeds 86°C
• Switch Capacity: Maximum 100W
• Contact Response: Slow
• Temperature Switch Connector: AMP Male 6.3 x 0.8 mm (2x)
• Packaging: VDO Sensor OEM Bulk Package
• Application: Engine Monitoring
• Sensor Signal: Insulated Return
• Country of Origin: Germany

Compatibility and Application:

• Ideal for engine and industrial system temperature monitoring
• Suitable for systems requiring precise temperature control
• Compatible with engines and equipment operating on 6-24V DC
• Perfect for automotive and industrial applications where accurate temperature regulation is crucial

Benefits:

• Reliable temperature control helps prevent engine and system overheating
• 100W maximum switching capacity ensures handling of heavy-duty applications
• Precise activation and deactivation points improve system safety and reliability
• Versatile compatibility with a wide voltage range (6V to 24V DC)
• Slow contact response prevents electrical damage and ensures durability
