The VDO X10-224-009-048 is a heavy-duty tubular sender with a tube length of 641 mm ± 2.0 mm, designed for various tank depths and operating temperatures from -25 °C to +65 °C. It features a 6-hole 80 mm mounting flange, and is compatible with oil, petroleum, diesel, and gasoline. The sender operates on 6 - 24 V DC with a resistance of 81.0 Ohm ± 1.8 Ohm when empty and 0.8 Ohm ± 0.4 Ohm when full. It does not have a built-in warning contact but offers an optional VDO A2C59510886 Makepoint Switch.

Description
Ask a Question

VDO X10-224-009-048 - Heavy Duty Ø80mm Tubular Sender - 641mm

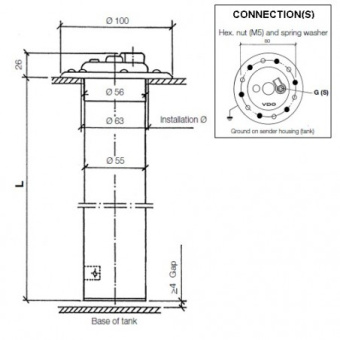

The VDO X10-224-009-048 is a robust and reliable tubular sender designed for heavy-duty applications. With an overall tube length of 641 mm ± 2.0 mm, it is suitable for a range of tank depths, offering flexibility and precision in various environments.

Key specifications include:
- Tube Length: 641 mm ± 2.0 mm
- Minimum Tank Depth: 641 mm ± 2.0 mm + 4.0 mm
- Support Spring: None
- Mounting Flange: 6-Hole 80 mm
- Operating Temperature: -25 °C to +65 °C
- Compatible Fuels: Oil, Petroleum, Diesel, Gasoline
Electrical Features:
- Operating Voltage: 6 - 24 V DC
- Resistance Empty: 81.0 Ohm ± 1.8 Ohm
- Resistance Full: 0.8 Ohm ± 0.4 Ohm
- Warning Contact: None
- Optional Warning Contact: VDO A2C59510886 Makepoint Switch
