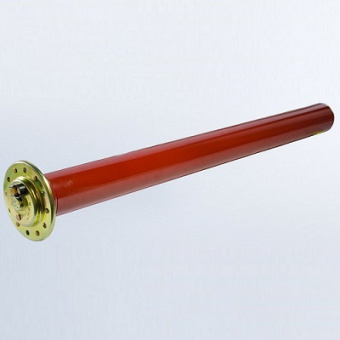

VDO X10-224-009-039 - Heavy Duty Ø80mm Tubular Sender - 596mm

Article VDO.X10224009039

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO X10-224-009-039 is a durable tubular sender with a 596 mm tube length and a minimum tank depth requirement of 596 mm ± 2.0 mm + 4.0 mm. It features a 6-hole 80 mm mounting flange, operates between -25 °C and +65 °C, and is compatible with various fuels such as oil, petroleum, diesel, and gasoline. Electrically, it functions at 6 - 24 V DC, with resistance values of 75.0 Ohm ± 1.6 Ohm when empty and 1.3 Ohm ± 0.4 Ohm when full. Although it lacks a built-in warning contact, an optional one can be added using the VDO A2C59510886 Makepoint Switch.

Description
Ask a Question

VDO X10-224-009-039 - Heavy Duty Ø80mm Tubular Sender - 596mm

The VDO X10-224-009-039 is a robust and versatile tubular sender designed for a variety of fuel types. With a tube length of 596 mm ± 2.0 mm and a minimum tank depth of 596 mm ± 2.0 mm + 4.0 mm, this sender is built to accommodate a wide range of applications.

It features a 6-hole 80 mm mounting flange and operates effectively within a temperature range of -25 °C to +65 °C. This sender is compatible with various fuels including oil, petroleum, diesel, and gasoline.

In terms of electrical specifications, the sender operates at a voltage range of 6 - 24 V DC. Its resistance is 75.0 Ohm ± 1.6 Ohm when empty and 1.3 Ohm ± 0.4 Ohm when full. Note that it does not come with a warning contact by default, but an optional warning contact can be added using the VDO A2C59510886 Makepoint Switch.
