VDO X10-224-009-029 - Heavy Duty Ø80mm Tubular Sender - 741mm

Article VDO.X10224009029

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO X10-224-009-029 is a heavy-duty tubular sender with an 80 mm diameter and a tube length of 741 mm, designed for various fuel types including oil, petroleum, diesel, and gasoline. It operates within a temperature range of -25 °C to +65 °C and supports voltages from 6 to 24 V DC. The sender features a 6-hole mounting flange and provides resistance readings of 65.0 Ohm when empty and 0.5 Ohm when full. There is no built-in warning contact, but an optional VDO A2C59510886 Makepoint Switch is available.

Description
Ask a Question

VDO X10-224-009-029 - Heavy Duty Ø80mm Tubular Sender - 741mm

This heavy-duty tubular sender is designed to offer precision and reliability in fuel measurement applications. With a tube length of 741 mm, it is suitable for various tank depths and is built to withstand a wide range of operating conditions.

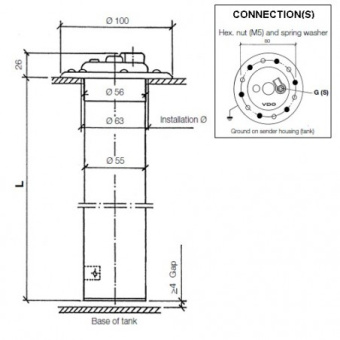

Specifications:
- Tube length: 741 mm ± 2.0 mm
- Minimum tank depth: 741 mm ± 2.0 mm + 4.0 mm
- Support spring: None
- Mounting flange: 6-Hole 80 mm
- Operating temperature: -25 °C to +65 °C
- Fuel compatibility: Oil, petroleum, diesel, gasoline
- Operating voltage: 6 - 24 V DC
- Resistance (empty): 65.0 Ohm ± 1.4 Ohm
- Resistance (full): 0.5 Ohm ± 0.4 Ohm
- Warning contact: None
- Optional warning contact: VDO A2C59510886 Makepoint Switch
