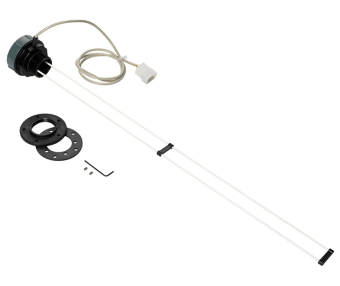

VDO N02-240-902 - Waste Water Sensor 4-20 mA - 80-600mm

SKU: BB N02240902

€ 319,83

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The VDO N02-240-902 Waste Water Sensor is a high-precision capacitive sensor designed for reliable waste water level monitoring in tanks ranging from 80 mm to 600 mm in depth. Featuring a 4-20 mA analog output, it seamlessly integrates into industrial and commercial control systems. With a robust operating temperature range of -30°C to +70°C, this versatile sensor is ideal for use with plastic, stainless steel, and aluminum tanks. It supports a variety of liquids, including shower water, kitchen waste, toilet waste, and fresh water. The sensor’s galvanic isolation ensures safety, while its adjustable measurement range provides flexible and accurate readings. Easy to install with a G 1 1/4" male thread, this durable sensor offers a long lifespan, low maintenance, and cost-effective performance for various applications.

Description
Ask a Question

VDO N02-240-902 - Waste Water Sensor 4-20 mA - 80-600mm

The VDO N02-240-902 Waste Water Sensor is a capacitive sensor designed for precise and reliable waste water level monitoring. It has an adjustable tank depth range of 80 mm to 600 mm, making it suitable for various tank sizes. This sensor is ideal for monitoring waste liquids like shower water, kitchen water, toilet waste, and fresh water. With a 4-20 mA analog output, it is perfect for integration into control systems in industrial and commercial applications.

Key Features
- Thread Type: G 1 1/4" Male for secure installation and easy compatibility with standard fittings
- Adjustable Tank Depth Range: 80 mm to 600 mm, offering flexibility for different tank depths
- Sensor System: Capacitive, ensuring precise and accurate waste water level detection
- Output Signal: 4-20 mA analog, providing reliable communication with control systems
- Sensor Signal: Galvanic isolation, protecting control systems from electrical faults
- Operating Voltage: 6-24 V DC, compatible with a wide range of systems
- Operating Temperature Range: -30 °C to +70 °C, enabling operation in both cold and hot environments
- Sensor Diameter: 72.5 mm for easy integration into various tank designs
- Sensor Hole Size: 42 mm for proper fitting in tank installations
- Mounting Flange: 80 mm, providing stability during installation
- Sensor Height Above Tank: 40 mm, positioned for optimal measurement accuracy
- Tank Compatibility: Suitable for plastic, stainless steel, and aluminum tanks
- Warning Contact: Adjustable, allowing customization of the sensor’s measurement range
- Packaging: Includes one black water sensor in a retail package for easy handling and installation
Specifications
- Tank Depth Range: 80 mm to 600 mm
- Sensor System: Capacitive
- Output Empty-Full: 4-20 mA
- Sensor Diameter: 72.5 mm
- Sensor Hole Size: 42 mm
- Mounting Flange: 80 mm
- Sensor Height Above Tank: 40 mm
- Operating Voltage: 6-24 V DC
- Signal Type: Analog
- Thread Type: G 1-1/4" Male
- Installation Dimension: 64 mm
- Operating Temperature: -30 °C to +70 °C
- Liquids Measured: Shower water, Kitchen water, Toilet waste, Fresh water
- Warning Contact: Adjustable, for enhanced control over the sensor's measuring range
- Sensor Type: Waste water capacitive sensor (Vuilwater capacitieve sensoren)
- Electrical Protection: Galvanic isolation for safer operation in various environments
- Mounting Flange Material: Stainless steel for durability and corrosion resistance
- Connector Type: Standard connector compatible with VDO system wiring
- Installation Requirements: 64 mm installation dimension for accurate fitting
- Measurement Signal Type: Analog (4-20 mA), suitable for industrial-level integration
Compatibility and Application

This sensor is ideal for waste water level measurement in various tank systems, including plastic, stainless steel, and aluminum tanks. It is designed for use with shower water, kitchen waste, toilet water, and fresh water applications. The VDO N02-240-902 ensures reliable monitoring and is suitable for use in both residential and industrial settings where precise liquid level measurements are required.

Benefits
- Precision and Accuracy: The capacitive sensor ensures highly accurate waste water level measurements, improving the efficiency of waste water management systems.
- Wide Temperature Range: The sensor operates effectively in a temperature range from -30 °C to +70 °C, making it suitable for various environmental conditions.
- Compatibility: It works with plastic, stainless steel, and aluminum tanks, providing versatility in different system configurations.
- Reliability: The galvanic isolation protects sensitive control systems from electrical faults, increasing system longevity and reliability.
- Flexibility in Application: With an adjustable measurement range and tank depth, the sensor can be easily adapted to a variety of tanks and applications.
- Cost-Effective: Its durable design and low-maintenance requirements contribute to long-term cost savings by reducing the need for frequent replacements and servicing.
- Ease of Installation: The standard thread and mounting flange make installation straightforward, reducing setup time and effort.
- Long Lifespan: The high-quality materials and reliable performance ensure the sensor lasts for years, minimizing the need for replacements.
