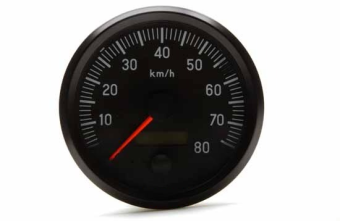

VDO 437-055-009C - Cockpit International Speedometer Gauge

VDO 437-055-009C - Cockpit International Speedometer Gauge

The VDO 437-055-009C is a high-quality speedometer gauge from the renowned Cockpit International series, designed to provide accurate speed readings in a sleek and durable package. With a measurement range of 0 to 80 km/h, it is perfect for use in automotive and marine navigation systems. The black dial and red backlight pointer enhance visibility, while the gauge's robust design ensures reliability in all conditions. Featuring an analog tacho impulse signal, the gauge operates within a voltage range of 11-30 V DC, making it versatile for various vehicle and boat applications. The front is protected by IP64-rated protection, making it resistant to dust, water, and UV exposure. This speedometer is built to endure harsh environments with its anti-glare, single-glazed lens and durable plastic flame-retardant housing.

Key Features

• Measurement Range: 0 - 80 km/h, ideal for a variety of vehicle and marine applications.
• Operating Voltage: 11 - 30 V DC, compatible with most electrical systems.
• Front Protection Class: IP64 (DIN 40050), providing excellent protection against dust, water, and UV radiation.
• Lens: Single-glazed, anti-glare, ensuring clear visibility under various lighting conditions.
• Dial Illumination: Optional floodlight illumination in 12V and 24V versions for enhanced readability.
• Pointer: Red backlight for better visibility at night or in low-light conditions.
• Bezel: Black triangular bezel with interchangeable design (special tool required).
• Mechanical Shock Resistance: Max. 1G shock resistance for 8 hours at 25Hz - 2000Hz for improved durability.

Specifications

• Measurement Range: 0 - 80 km/h
• Signal Type: Analog tacho impulse signal
• Operating Voltage: 11 - 30 V DC
• Front Protection Class: IP64 (DIN 40050) - Ozone-proof, UV-proof
• Rear Protection Class: IP42 (DIN 40050)
• Operating Temperature: -20°C to +70°C
• Dial Color: Black
• Pointer: Red backlight
• Bezel: Black triangle, interchangeable with a special tool
• Lens: Single-glazed, non-reflective
• Illumination: Optional floodlight illumination (12V - 3.4 Watt, 24V - 3 Watt)
• CE Standard: Yes
• EMC Test: According to EN 13309 and ISO 13766
• Nominal Position: NL 0 to NL 90 - DIN 16257
• Housing: Plastic flame-retardant
• Packaging: VDO Speedometer retail package
• Country of Origin: Germany

Compatibility and Application

• Ideal for use in automotive, marine, and industrial navigation systems for accurate speed monitoring.
• Compatible with a variety of VDO Cockpit International instruments for seamless integration in dashboard setups.
• Perfect for vehicles or boats with voltage systems in the range of 11-30 V DC.
• Suitable for applications that require a durable, high-precision speedometer in harsh conditions.

Benefits

• Reliable and accurate speed measurement up to 80 km/h for enhanced navigation performance.
• Durable construction with IP64 front protection ensures long-lasting functionality even in challenging environments.
• Red backlight pointer provides optimal visibility, particularly in low-light or nighttime conditions.
• Easy integration with existing VDO Cockpit International systems for a cohesive dashboard experience.
• Highly resistant to mechanical shocks, ensuring durability in demanding conditions.
