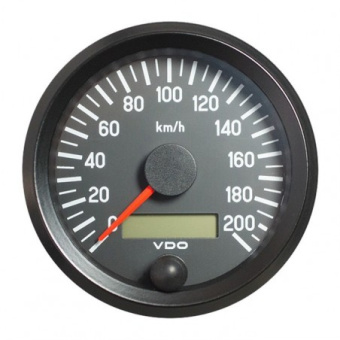

VDO 437-035-003G - Cockpit International Speedometer 200 Km/h 80mm 12-24V

Article VDO.437035003G

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 437-035-003G Cockpit International Speedometer features a 200 Km/h analog range and is designed for precision with a diameter of 80 mm and a depth of 91 mm. It includes an odometer and trip counter, supports various RPM sensors, and connects through an 8-Pole AMP connector. It operates on 11-30 Volt DC with a current consumption of under 100 mA and has reverse polarity protection for added safety.

Description
Ask a Question

VDO 437-035-003G - Cockpit International Speedometer 200 Km/h 80mm 12-24V

The VDO 437-035-003G Cockpit International Speedometer is designed for precision and reliability in measuring speed. With an analog speed range of 0 to 200 Km/h, this 80mm speedometer is ideal for various automotive applications. It features a robust design with an installation diameter of 80 mm (3 1/8 Inch) and an outside diameter of 85 mm (3 1/3 Inch). The installation depth required is 91 mm, with adjustable locking heights using either the Spinlock nut (0.5 mm - 23 mm) or a bracket (0.5 mm - 12 mm). The speedometer does not support flushmount installation. In terms of functionality, the VDO speedometer includes an odometer, a trip counter, and a choice of sensor signal options: RPM Inductive, RPM Hall, or RPM Blockingoscillator sensors. It connects via an 8-Pole AMP Male blade connector (6.3 x 0.8 mm) and features an illumination connection with four AMP Male blade connectors (6.3 x 0.8 mm). The device operates with a voltage range of 11 - 30 Volt DC and consumes less than 100 mA current without illumination. Additionally, it is equipped with reverse polarity protection for enhanced safety and durability.
