The VDO 437-035-002C Cockpit International Speedometer offers precise speed readings from 0 to 120 Km/h with a classic analog display. It features an 80 mm hole diameter and a 91 mm installation depth, with adjustable locking heights and compatibility for various RPM sensors. The speedometer operates on 11-30 Volt DC and includes illumination and reverse polarity protection, making it a reliable choice for accurate vehicle speed measurement.
- Description
- Ask a Question
-

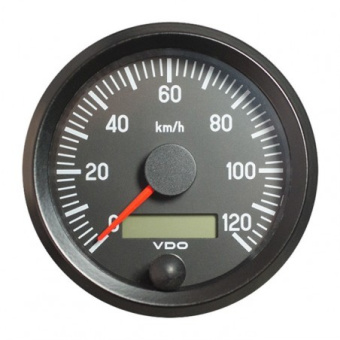

VDO 437-035-002C - Cockpit International Speedometer 120 Km/h 80mm 12-24V
The VDO 437-035-002C Cockpit International Speedometer is designed for precise speed measurement in various vehicles. Featuring a classic analog display, this speedometer provides a speed range of 0 to 120 Km/h, ensuring accurate readings for a wide range of driving conditions.
Key specifications include:
- Installation hole diameter: 80 mm (3 1/8 Inch)
- Outside diameter: 85 mm (3 1/3 Inch)
- Installation depth: 91 mm
- Locking height with Spinlock nut: Optional 0.5 mm - 23 mm
- Locking height with bracket: 0.5 mm - 12 mm
- Flushmount: None
Functionality includes:
- Analog speed range: 0 to 120 Km/h
- Odometer and trip counter
- Sensor signal options: RPM Inductive sensor, RPM Hall sensor, RPM Blocking oscillator sensor
Additional details:
- Accuracy: Not specified by VDO
- Connection: 8-Pole AMP Male blade connector 6,3 x 0,8mm
- Illumination connection: AMP Male blade connector 6,3 x 0,8mm (4x)
- Operating voltage: 11 - 30 Volt DC
- Current consumption without illumination: < 100 mA
- Reverse polarity protection: Yes
-
