SKU:
VDO 365100010121C
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Our managers will contact you and clarify the terms of the order
The VDO 365-100-010-121C EPS Pressure Sender is a robust pressure sensor designed for various applications, with a measurement range of 0-10 Bar (0-145 PSI, 0-1000 KPa) and the ability to withstand up to 30 Bar for short periods. It features an M12 x 1.5 thread, operates in temperatures from -40 °C to +125 °C, and is compatible with oil, fuel, and air. The sensor operates on 18-32 V DC, outputs a 0.5-4.5 V signal, and includes a dual-pole insulated return. It has no built-in warning contact but can be paired with an optional VDO Makepoint Switch.
- Description
- Ask a Question
-

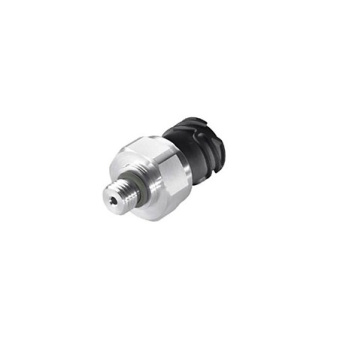

VDO 365-100-010-121C - EPS Pressure Sender 10 Bar – M12
The VDO 365-100-010-121C EPS Pressure Sender is a reliable and versatile pressure measurement solution designed for a wide range of applications. This sensor is ideal for monitoring and controlling pressure in various systems, ensuring accuracy and durability even in harsh conditions.
Pressure Measuring Range
- 0 - 10 Bar
- 0 - 145 PSI
- 0 - 1000 KPa
Maximum Pressure
Withstands up to 30 Bar for 2 seconds.
Thread Specifications
- Thread: M12 x 1.5
- Thread + Nut Length (L1): 28 mm
- Thread Length (L2): 11 mm
- Torque: 40 Nm
Operating Temperature
Suitable for environments ranging from -40 °C to +125 °C.
Pressure Medium Compatibility
Compatible with oil, fuel, and air.
Electrical Features
- Operating Voltage: 18 - 32 V DC
- Output Voltage Range: 0.5 - 4.5 V
- Pressure Sensor Signal: Dual-Pole insulated return
Warning Contact
No built-in warning contact, but supports optional VDO A2C59510886 Makepoint Switch.
Connector
Bayonet ISO15170 for secure and reliable connections.
-
Ask a Question
