The VDO 360-081-030-078C pressure sender measures pressures from 0 to 10 Bar, with a maximum tolerance of 30 Bar for short bursts. It features an M14 x 1.5 thread, operates between -25 °C and +100 °C, and is compatible with oil, fuel, and air. Electrically, it works at 6 to 24 V DC and has a resistor range of 10 to 184 Ohms. It includes a warning contact that activates at 1.00 Bar ± 0.15 Bar and has a switching capacity of up to 5 Watts, closing with falling pressure. The connectors are M4 thread.
- Description
- Ask a Question
-

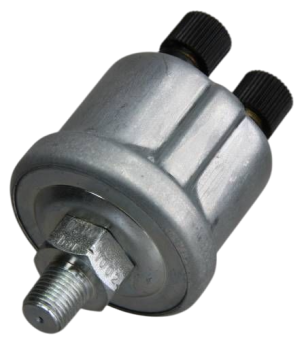

VDO 360-081-030-078C - Pressure Sender 0-10 Bar - M14
The VDO 360-081-030-078C is a precision pressure sender designed to measure pressures within a range of 0 to 10 Bar (0 to 145 PSI or 0 to 1000 KPa). It features a robust maximum pressure tolerance of 30 Bar for up to 2 seconds, ensuring durability under high pressure conditions.
Key specifications include a thread size of M14 x 1.5 with a total length of 20.5 mm and a thread length of 12 mm. The recommended torque for installation is 60 Nm. It operates efficiently across a temperature range from -25 °C to +100 °C and is compatible with various pressure mediums such as oil, fuel, and air.
On the electrical side, the pressure sender operates within a voltage range of 6 to 24 V DC and features a resistor range of 10 to 184 Ohms. The sensor signal is a single-pole common ground. The unit includes a warning contact that activates at 1.00 Bar ± 0.15 Bar, with a switching capacity of up to 5 Watts (non-inductive). The warning contact closes with falling pressure. Both the pressure sender and warning contact connectors use an M4 thread for secure attachment.
-
