The VDO 360-081-030-036K is a versatile pressure sender with a range of 0-5 Bar, 0-72.5 PSI, or 0-500 KPa, and can handle up to 30 Bar for 2 seconds. It features an M18 x 1.5 thread, operates within -25 °C to +100 °C, and supports oil, fuel, and air pressure mediums. It runs on 6-24 V DC with a resistor range of 10-184 Ohm, and includes a warning contact that activates at 0.50 Bar ± 0.15 Bar with a maximum capacity of 5 Watts. The connectors are M4 plastic knurled nuts.
- Description
- Ask a Question
-
VDO 360-081-030-036K - Pressure Sender 0-5 Bar - M18

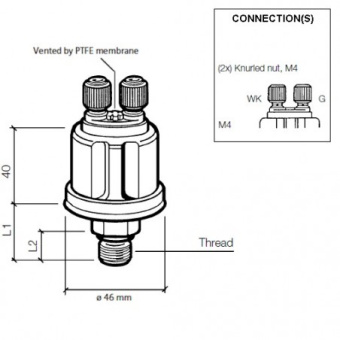

The VDO 360-081-030-036K is a precision pressure sender designed for accurate pressure measurement in various applications. This model offers a pressure measuring range from 0 to 5 Bar, 0 to 72.5 PSI, and 0 to 500 KPa. It is capable of handling a maximum pressure of up to 30 Bar for 2 seconds. The sender features an M18 x 1.5 thread with a total length of 20.5 mm including the nut, and a thread length of 12 mm. It requires a torque of 100 Nm for installation.
Engineered to operate within a temperature range of -25 °C to +100 °C, it is suitable for pressure mediums such as oil, fuel, and air. The device operates on a voltage range of 6 to 24 V DC and has a resistor range of 10 to 184 Ohm. It provides a single-pole common ground signal for the pressure sensor and includes a warning contact that activates at 0.50 Bar ± 0.15 Bar. The warning contact has a maximum switching capacity of 5 Watts and closes with falling pressure. The connectors for both the pressure sender and warning contact are M4 plastic knurled nuts.
-
