VDO 360-081-030-033C - Pressure Sender 0-5 Bar - M14

VDO 360-081-030-033C - Pressure Sender 0-5 Bar - M14

The VDO 360-081-030-033C Pressure Sender is designed to provide precise oil, fuel, or air pressure measurements with a pressure range of 0 to 5 Bar (0 - 72.5 PSI or 0 - 500 kPa). Featuring an M14 x 1.5 thread, this high-quality sensor is built for easy installation and reliable performance across various applications. It includes a warning contact that activates when pressure drops to 0.40 Bar ± 0.10 Bar, alerting users to low pressure conditions. With a robust construction designed to withstand temperatures between -25°C and +100°C, this sensor ensures durability even under harsh conditions. It also has a maximum pressure tolerance of 30 Bar for up to 2 seconds, making it suitable for demanding environments. The VDO 360-081-030-033C operates with a 6 - 24 V DC voltage range, delivering precise analog pressure signals with a resistance range of 10 - 184 Ohms. It’s the ideal solution for engine monitoring and other pressure measurement needs.

Key Features:

• Pressure Range: 0 to 5 Bar (0 - 72.5 PSI or 0 - 500 kPa)
• M14 x 1.5 thread for secure installation and compatibility with various systems
• Warning contact at 0.40 Bar ± 0.10 Bar for early detection of pressure drops
• Operating Voltage: 6 - 24 V DC for versatile use in different systems
• Durable construction with an operating temperature range of -25°C to +100°C
• Maximum pressure tolerance of 30 Bar for up to 2 seconds
• Resistor range of 10 - 184 Ohms for accurate analog signal output
• M4 threaded connector for easy integration with other components

Specifications:

• Pressure Measuring Range: 0 - 5 Bar (0 - 72.5 PSI or 0 - 500 kPa)
• Warning Contact: 0.40 Bar ± 0.10 Bar
• Thread: M14 x 1.5

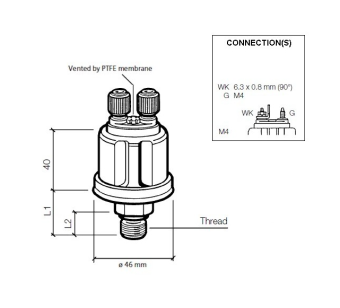

• Thread Length (L2): 12 mm
• Length (Thread + Nut - L1): 20.5 mm
• Maximum Torque: 60 Nm
• Operating Voltage: 6 - 24 V DC
• Resistor Range: 10 - 184 Ohm
• Operating Temperature: -25°C to +100°C
• Pressure Medium: Oil, Fuel, Air
• Maximum Pressure: 30 Bar (for 2 seconds)
• Warning Contact Switching Capacity: 5 Watt non-inductive
• Warning Contact Features: Closes with falling pressure
• Pressure Sensor Signal: Analog, Single-pole common ground
• Warning Contact Connector: M4 AMP Male 6.3 x 0.8 mm 50°
• Pressure Sensor Connector: M4 Threaded end
• Packaging: VDO Sensor retail package
• Country of Origin: Germany

Compatibility and Application:

• Engine oil pressure monitoring systems
• Automotive, industrial, and machinery pressure measurement applications
• Systems requiring precise analog pressure sensing

Benefits:

• Accurate and reliable pressure measurements within a 0-5 Bar range
• Warning contact helps prevent low-pressure damage by alerting users to issues early
• Durable construction for long-term use in extreme conditions and temperatures
• Easy to integrate with existing engine monitoring or control systems
• Long-lasting performance, ensuring dependable service in demanding environments
