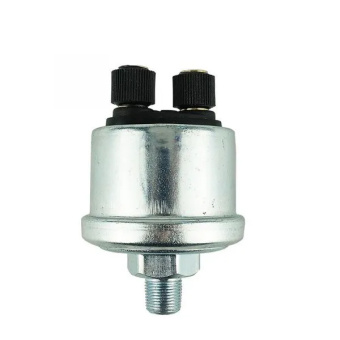

VDO 360-081-030-032K - Pressure Sender 0-10 Bar - M14

SKU: VDO 360081030032K

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 360-081-030-032K Pressure Sender is a high-quality sensor designed for accurate monitoring of pressure levels ranging from 0 to 10 Bar (0-145 PSI, 0-1000 KPa) in oil, fuel, and air systems. Featuring a durable M14 x 1.5 thread with a 12 mm thread length and a total length of 20.5 mm, it provides reliable performance under demanding conditions. It operates with a resistance range of 10 to 184 Ohm and includes a warning contact set at 0.50 Bar ± 0.15 Bar, with a maximum switching capacity of 5 Watts. Suitable for operating voltages between 6 and 24 V DC, this sensor integrates seamlessly with VDO engine monitoring systems and uses M4 plastic knurled nut connectors for secure connections. Built to withstand temperatures from -25 °C to +100 °C and pressure peaks up to 30 Bar for 2 seconds, it offers long-lasting durability and precise performance for automotive, marine, and industrial applications.

Description
Ask a Question

VDO 360-081-030-032K - Pressure Sender 0-10 Bar - M14

Key Features:
- Measures pressure within a range of 0 to 10 Bar (0-145 PSI, 0-1000 KPa).
- Durable M14 x 1.5 thread with a thread length of 12 mm and a total length including nut of 20.5 mm.
- Accurate sender resistance range from 10 to 184 Ohm for precise pressure monitoring.
- Features a 1-pole common ground signal for efficient integration into systems.
- Includes a warning contact at 0.50 Bar ± 0.15 Bar, with a switching capacity of up to 5 Watt.
- Designed to monitor pressure mediums such as oil, fuel, and air.
- Built to withstand a maximum pressure of 30 Bar for up to 2 seconds.
- Compact design with M4 plastic knurled nut connectors for signal and warning contact connections.
Specifications:
- Pressure Range: 0 to 10 Bar (0-145 PSI, 0-1000 KPa)
- Maximum Pressure: 30 Bar (2 seconds)
- Thread: M14 x 1.5 Male
- Thread Length (L2): 12 mm
- Length with Nut (L1): 20.5 mm
- Torque: 60 Nm
- Operating Temperature: -25 °C to +100 °C (-13 °F to +212 °F)
- Pressure Medium: Oil, Fuel, Air
- Operating Voltage: 6-24 V DC
- Signal Output: 10-184 Ohm (Analog)
- Warning Contact: 0.50 Bar ± 0.15 Bar
- Warning Contact Switching Capacity: Maximum 5 Watt (non-inductive)
- Connector Type: M4 Plastic Knurled Nut
- Application: VDO Engine Monitoring
- Packaging: VDO Sensor Retail Package
- Country of Origin: Germany
- Category: Pressure Senders
Compatibility and Application:
- Ideal for engine oil pressure monitoring in automotive, marine, and industrial systems.
- Compatible with VDO engine monitoring systems and standard 6-24 V DC setups.
- Designed for accurate measurement of oil, fuel, and air pressure in critical applications.
Benefits:
- Ensures precise and reliable pressure monitoring for enhanced engine performance and safety.
- Durable construction designed to withstand demanding conditions and high pressures.
- Easy integration with systems using standard M14 x 1.5 thread and common ground signals.
- Compact design with high-quality connectors ensures secure and efficient installation.
- Backed by VDO’s reputation for reliability and accuracy in automotive components.
