The VDO 360-081-029-013K is a high-performance pressure sender that accurately measures pressure in a range of 0 to 10 Bar, making it suitable for monitoring oil, fuel, and air pressure in various applications. It can handle a maximum pressure of 30 Bar for short durations and operates effectively within a temperature range of -25 °C to +100 °C. Featuring an M12 x 1.5 thread and a torque specification of 40 Nm, this device operates on a voltage range of 6 to 24 V DC and utilizes a single-pole common ground signal for its electrical features.
- Description
- Ask a Question
-

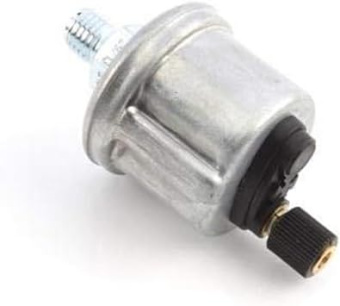

VDO 360-081-029-013K - Pressure Sender 0-10 Bar - M12
The VDO 360-081-029-013K is a high-performance pressure sender designed for precise pressure measurement in various applications. With a measuring range of 0 to 10 Bar, it is suitable for monitoring oil, fuel, and air pressure effectively.
- Pressure measuring range: 0 - 10 Bar, 0 - 145 PSI, 0 - 1000 KPa
- Maximum pressure: 30 Bar for up to 2 seconds
- Thread: M12 x 1.5
- Length of thread + nut (L1): 20.5 mm
- Thread length (L2): 12 mm
- Torque: 40 Nm
- Operating temperature: -25 °C to +100 °C
- Pressure medium: Oil, Fuel, Air
Electrical Features
- Operating voltage: 6 - 24 V DC
- Resistor range: 10 - 184 Ohm
- Pressure sensor signal: Single-Pole common ground
- Warning contact: None
- Optional warning contact: VDO A2C59510886 Makepoint Switch
- Pressure sender connector: M4 Plastic knurled nut
-
