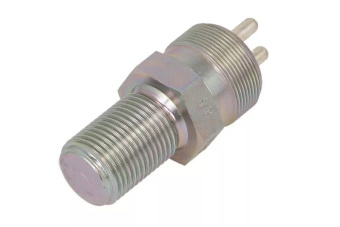

VDO 340-804-005-002C - Inductive Tacho - Speed Sender - M18

Article BB-340804005002C

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 340-804-005-002C is a precision inductive tachometer with an M18 x 1.5 male thread, designed for accurate speed measurement. It operates at 250 Hz (15,000 pulses per minute) and is suitable for temperatures ranging from -30°C to +140°C. The sensor has an overall length of 63 mm, with specific component lengths of 24.9 mm, 26.5 mm, and 27.65 mm to 27.30 mm. It features an independent operating voltage, an insulated return signal output, a 2-pole Kostal M24 x 1 connector with a 4 mm pin diameter, and an internal resistance of 1,050 Ohms ± 100 Ohms.

Description
Ask a Question

VDO 340-804-005-002C - Inductive Tacho - Speed Sender - M18

The VDO 340-804-005-002C is an advanced inductive tachometer designed for precise speed measurement. This model features a robust construction with an M18 x 1.5 male thread, making it compatible with a range of applications.

It operates with a frequency of 250 Hz, translating to 15,000 pulses per minute, which ensures accurate speed readings. The sensor is built to endure extreme temperatures, functioning reliably from -30°C to +140°C.

In terms of dimensions, the sender has an overall length of 63 mm. The specific lengths of various components are 24.9 mm for L1, 26.5 mm for L2, and a range of 27.65 mm to 27.30 mm for L3.

For electrical specifications, it operates independently of voltage with an insulated return signal output. The connector is a 2-pole Kostal M24 x 1 with a pin diameter of 4 mm, and it has an internal resistance of 1,050 Ohms ± 100 Ohms.
