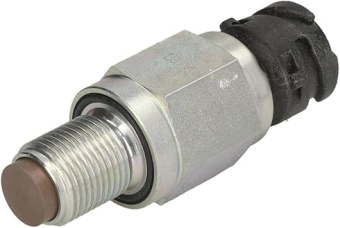

VDO 340-216-009-002Z - Blocking Oscillator Tacho - Speed Sender

SKU: VDO 340216009002Z

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 340-216-009-002Z Blocking Oscillator Tacho is a high-precision speed sender designed for VDO engine monitoring systems, offering a frequency range of up to 400 Hz and generating 24,000 pulses per minute. Featuring a durable M18 x 1.5 thread, it has a sender length of 133 mm and supports precise measurements with an adjustable distance to the pulse generator from 0.3 mm to 1.4 mm. Powered by a stabilized 8-15V DC supply, it delivers a 2-pole insulated return signal with minimal current consumption of 12 mA. The 4-pole bayonet connector ensures secure and reliable installation, while its robust design operates effectively in temperatures from -40°C to +130°C. Ideal for automotive, industrial, and marine applications, this blocking oscillator sensor provides accurate RPM and speed readings with durable performance in demanding environments.

Description
Ask a Question

VDO 340-216-009-002Z - Blocking Oscillator Tacho - Speed Sender

Key Features:
- Blocking oscillator sender type with a frequency range up to 400 Hz, generating 24,000 pulses per minute.
- Powered by a stabilized 8-15V DC power supply for consistent performance.
- Provides a 2-pole insulated return sensor signal for reliable data output.
- Equipped with a 4-pole bayonet connector (2.8 mm) for secure and easy installation.
- Durable M18 x 1.5 thread with a sender length of 133 mm and a sender element length of 90.2 mm.
- Operating temperature range of -40°C to +130°C for use in demanding environments.
- Adjustable distance between sender and pulse generator from 0.3 mm to 1.4 mm for precise measurement.
Specifications:
- Sender Type: Blocking Oscillator - 400Hz
- Power Supply: 8-15V DC Stabilized
- Sensor Signal: 2-Pole Insulated Return
- Thread: M18 x 1.5 Male
- Maximum Frequency: 400 Hz (24,000 Pulses per Minute)
- Overall Sender Length (L2): 133 ± 1 mm
- Sender Element Length Including Thread (L1): 90.2 mm
- Sender Diameter: 15.5 mm
- Distance Between Sender and Pulse Generator: 0.3 mm to 1.4 mm
- Duty Cycle: (t on + t off) / t on = 1.43 to 3.33
- Connector: 4-Pole Bayonet Contacts (3 x 0.8 mm)
- Current Consumption: 12 mA
- Operating Temperature: -40°C to +130°C
- Signal Output: Insulated Return
- Application: VDO Engine Monitoring
- Packaging: VDO Sensor Retail Package
- Country of Origin: Czech Republic
- Category: Blocking Oscillator Sensors
Compatibility and Application:
- Designed for use in VDO engine monitoring systems requiring RPM measurement and speed sensing.
- Suitable for automotive, industrial, and marine applications demanding precise pulse generation and signal reliability.
Benefits:
- Delivers accurate and stable RPM and speed readings across a wide frequency range.
- Durable construction and materials ensure reliable operation in extreme temperatures and harsh environments.
- Compact design with secure 4-pole bayonet connector allows for easy installation and integration.
- Powered by a stabilized voltage supply, minimizing signal fluctuations for improved performance.
- Backed by VDO’s reputation for innovation and reliability in engine monitoring solutions.
