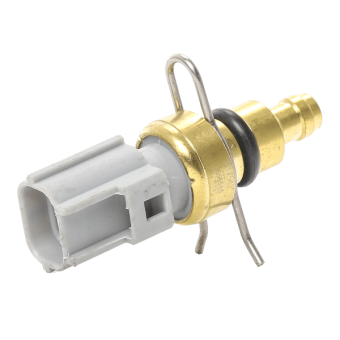

VDO 323-805-034-002B - Coolant Temperature Sender 130°C - M14

Article VDO.323805034002B

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 323-805-034-002B coolant temperature sender accurately measures temperatures from +40°C to +130°C, with an operating range of -30°C to +150°C. It features an M14 x 1.5 thread, a 29 mm length, and a 7.5 mm diameter sensor. Designed for use with various fluids, it operates between 6 to 24 V DC, has a resistor value of 330.17 Ohms at 100°C, and utilizes a dual-pole insulated return for the temperature signal, without a warning contact.

Description
Ask a Question

VDO 323-805-034-002B - Coolant Temperature Sender 130°C - M14

The VDO 323-805-034-002B is a high-precision coolant temperature sender designed for various temperature measuring applications. It features a temperature measuring range from +40°C to +130°C, making it suitable for monitoring coolant and other fluids in your engine system.

The sender operates effectively within a temperature range of -30°C to +150°C. It is equipped with an M14 x 1.5 thread and has a sender element length plus thread of 29 mm. The sensor diameter is 7.5 mm, and it requires a torque of 20 Nm for installation. This sensor can measure temperatures in coolant, water, air, engine oil, transmission oil, and fuel.

Electrically, the sender operates at a voltage range of 6 to 24 V DC. At 100°C, the resistor value is 330.17 Ohms. The sensor features a dual-pole insulated return for its temperature signal and does not include a warning contact.
