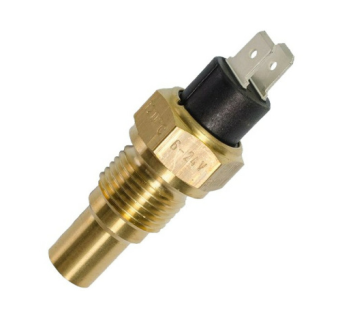

VDO 323-805-003-002N - Oil Temperature Sender 150°C - 1/4-18 NPTF

VDO 323-805-003-002N - Oil Temperature Sender 150°C - 1/4-18 NPTF

The VDO 323-805-003-002N is an advanced oil temperature sender that accurately monitors temperatures between +50°C and +150°C, making it ideal for a variety of engine and industrial applications. With a robust 1/4-18 NPTF male thread, it provides reliable temperature readings for a wide range of fluids, including engine oil, transmission oil, water, coolant, and fuel. Its versatile design and analog output make it an essential tool for precise engine monitoring and protection.

Key Features:

• Wide temperature range from +50°C to +150°C for precise oil temperature measurements.
• Durable 1/4-18 NPTF male thread ensures a secure and leak-free fit in a variety of applications.
• Reliable dual-pole insulated return signal for accurate performance.
• Compatible with VDO engine monitoring systems, offering easy integration for high-performance vehicles.
• Optional warning contact (VDO A2C59510886 Makepoint switch) for enhanced safety and alerts.
• Compact design with a sensor diameter of 11 mm and sender element length of 29 mm for easy installation in tight spaces.
• Excellent temperature tolerance, with an operating temperature range of -40°C to +180°C.
• Low-power consumption with an operating voltage range of 6-24 V DC.

Specifications:

• Temperature Range: +50°C to +150°C
• Thread Type: 1/4-18 NPTF Male
• Sender Resistance Range: 322.8 - 18.6 Ohm
• Signal Type: Dual-pole insulated return
• Optional Warning Contact: VDO A2C59510886 Makepoint switch
• Operating Voltage: 6 - 24 V DC
• Temperature Medium: Engine oil, coolant, water, transmission oil, fuel
• Operating Temperature Range: -40°C to +180°C
• Sender Element Length: 29 mm
• Sensor Diameter: 11 mm
• Torque: 20 Nm
• Signal Output: 322.8 - 18.6 Ohm
• Connector Type: AMP Male 6.3 x 0.8 mm
• Warning Contact: None (optional contact available)
• Packaging: VDO Sensor retail package

Compatibility and Application:

• Perfect for monitoring engine oil temperature in automotive and industrial systems.
• Ideal for use with VDO engine monitoring systems, offering reliable data for engine protection and performance analysis.
• Versatile enough for use with multiple temperature mediums including engine oil, fuel, water, and coolant.

Benefits:

• Accurate and reliable temperature monitoring ensures engine and fluid temperature stays within optimal operating conditions.
• Versatile design for use across various engine systems and temperature mediums.
• Durable construction for long-lasting performance in demanding environments.
• Optional warning contact provides additional protection, allowing for real-time alerts of high temperatures.
• Compact size and simple installation, making it ideal for space-constrained applications.
