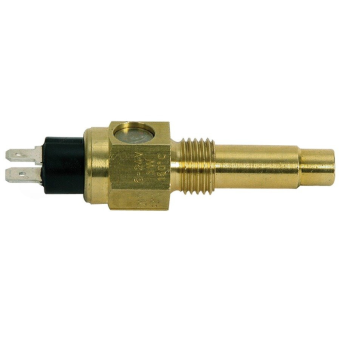

VDO 323-803-006-002C - Oil Temperature Sender 150°C - M14

Article BB-323803006002C

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 323-803-006-002C Oil Temperature Sender is a high-quality component designed to measure temperatures from +50°C to +150°C, with a torque rating of 20 Nm and compatibility with various temperature mediums like coolant, water, air, engine oil, transmission oil, and fuel.

Description
Ask a Question

VDO 323-803-006-002C - Oil Temperature Sender 150°C - M14

The VDO 323-803-006-002C Oil Temperature Sender is a high-quality component designed to measure temperatures in a range from +50°C to +150°C. With a minimum to maximum operating temperature of -40 °C to +180 °C, this sender is suitable for a variety of applications.

Featuring a thread size of M14 x 1.5 and a sender element length of 40 mm, this temperature sender is designed for precise and accurate temperature readings. The sensor diameter of 10.8 mm ensures efficient heat transfer and reliable performance.

With a torque rating of 20 Nm, the VDO Oil Temperature Sender is easy to install and secure in place. It is compatible with various temperature mediums including coolant, water, air, engine oil, transmission oil, and fuel, making it versatile for different systems.

In terms of electrical features, this sender operates at a voltage range of 6 to 24 V DC. It has a resistor range of 322.8 to 18.6 Ohm and a temperature sensor signal of Single-Pole common ground. The warning contact activates at 130 °C ± 4 °C and has a switching capacity of 1.2 to 3 Watt non-inductive.

The warning contact feature closes with rising temperature, providing an alert mechanism for temperature variations. Overall, the VDO Oil Temperature Sender is a reliable and efficient component for monitoring and controlling temperatures in various systems.
