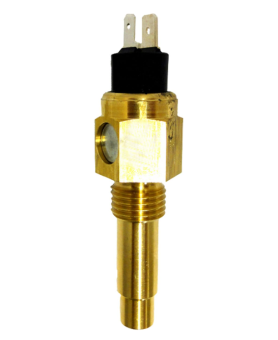

VDO 323-803-002-016D - Oil Temperature Sender 150°C - M14

VDO 323-803-002-016D - Oil Temperature Sender 150°C - M14

The VDO 323-803-002-016D Oil Temperature Sender is a precision sensor designed for measuring the temperature of engine oils, coolants, fuel, and transmission oils in automotive and industrial applications. With a temperature range of +50°C to +150°C and a durable M14 x 1.5 thread, this sensor provides reliable and accurate readings under various conditions. The sender operates with a 6-24 V DC voltage range and features an analog output signal with a resistance range of 322.8 - 18.6 Ohms. With a warning contact at 130°C ± 3°C, the sensor ensures safe temperature monitoring to protect your engine. It offers high durability with an operating temperature range of -30°C to +180°C and is ideal for use in harsh environments. Perfect for vehicles, machinery, and engine monitoring systems, this sensor is engineered for reliability and longevity.

Key Features:

• Temperature range from +50°C to +150°C for precise oil temperature monitoring
• Durable M14 x 1.5 thread for secure installation in a wide range of applications
• Warning contact at 130°C ± 3°C for safe engine temperature management
• Operating voltage range of 6-24 V DC for versatile application in various vehicles and machinery
• Sender resistance range of 322.8 - 18.6 Ohms for accurate temperature data
• Common ground signal output for easy integration with engine monitoring systems
• Warning contact switching capacity of 1.2 - 3 Watt non-inductive for enhanced reliability
• Operating temperature range from -30°C to +180°C for operation in extreme conditions
• Connector type: AMP Male 6.3 x 0.8 mm (temperature sensor), AMP Male 4.8 x 0.8 mm (warning contact)

Specifications:

• Measurement range: +50°C to +150°C
• Thread: M14 x 1.5 Male
• Sender resistance range: 322.8 - 18.6 Ohms
• Sensor signal: Single-Pole common ground
• Warning contact: 130°C ± 3°C
• Warning contact switching capacity: 1.2 - 3 Watt non-inductive
• Operating voltage: 6 - 24 V DC
• Temperature sensor connector: AMP Male 6.3 x 0.8 mm
• Warning contact connector: AMP Male 4.8 x 0.8 mm
• Temperature medium: Coolant, water, air, engine oil, transmission oil, fuel
• Operating temperature range: -30°C to +180°C
• Sensor diameter: 10.8 mm
• Sender element length + thread: 40 mm
• Torque: 20 Nm
• Packaging: VDO Sensor retail package
• Application: VDO Engine monitoring
• Signal: Analog
• Communication: Analog
• Category: Temperature sensors

Compatibility:

This oil temperature sender is designed for use in various automotive, industrial, and engine monitoring systems. It is ideal for applications requiring precise temperature measurements of engine oil, transmission oil, coolant, and fuel, with its robust M14 x 1.5 thread ensuring compatibility with a wide range of vehicles and machinery.

Benefits:

• Accurate temperature monitoring from +50°C to +150°C to ensure optimal engine performance
• Durable M14 x 1.5 thread for secure and easy installation
• Warning contact at 130°C for safe engine operation and protection against overheating
• Wide operating temperature range (-30°C to +180°C) for reliability in extreme environments
• Compatible with various engine monitoring systems and temperature sensors
• High-quality construction with AMP Male connectors for secure electrical connections
• Analog signal output ensures easy integration with existing systems
