VDO.323803001036D
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Our managers will contact you and clarify the terms of the order
The VDO 323-803-001-036D Coolant Temperature Sender measures temperatures from +40°C to +120°C and operates within a range of -40°C to +150°C. It features a 5/8-18 NF-3 thread, a 40 mm sender length, and a 10.8 mm sensor diameter. Designed for various mediums like coolant, water, air, engine oil, transmission oil, and fuel, it operates at 6 to 24 V DC with a resistor range of 287.4 to 22.7 Ohms. The sender includes a warning contact that activates at 103°C ± 3°C, with a switching capacity of 1.2 to 3 Watts.
- Description
- Ask a Question
-

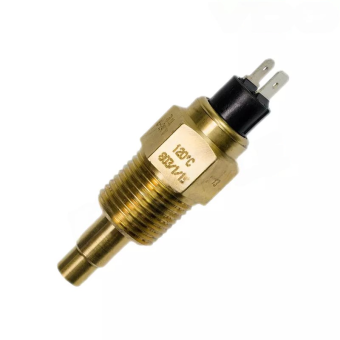

VDO 323-803-001-036D - Coolant Temperature Sender 120°C - 5/8-18 NF-3
Introducing the VDO 323-803-001-036D Coolant Temperature Sender, designed for precise temperature monitoring across a range of applications. This sender provides reliable temperature readings for various fluids and operating conditions.
VDO 323-803-001-036D - Coolant Temperature Sender 120°C - 5/8-18 NF-3
The VDO 323-803-001-036D Coolant Temperature Sender operates within a temperature range of +40°C to +120°C, with a minimum to maximum operating temperature of -40°C to +150°C. It features a 5/8-18 NF-3 thread and a sender element length of 40 mm, with a sensor diameter of 10.8 mm. The required torque for installation is 20 Nm. This sender is compatible with various temperature mediums, including coolant, water, air, engine oil, transmission oil, and fuel.
In terms of electrical specifications, the sender operates within a voltage range of 6 to 24 V DC. It has a resistor range from 287.4 to 22.7 Ohms and utilizes a single-pole common ground for the temperature sensor signal. The warning contact is set to trigger at 103°C ± 3°C, with a switching capacity of 1.2 to 3 Watts for non-inductive loads. The contact closes as the temperature rises, providing a reliable alert mechanism.
-
