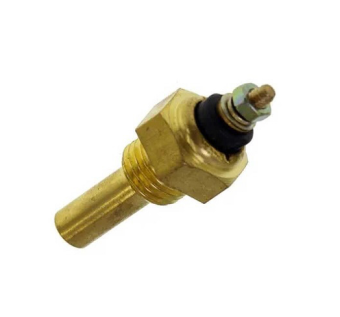

VDO 323-801-001-054D - Coolant Temperature Sender 120°C - M14

SKU: VDO 323801001054D

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 323-801-001-054D is a high-precision coolant temperature sender designed for reliable monitoring in automotive and industrial applications. It measures temperatures in the range of +40 °C to +120 °C, withstanding extreme conditions from –40 °C to +150 °C. Featuring a single-pole common ground signal and a resistance range of 287.4 to 22.7 Ohm, it ensures accurate analog signal output for effective engine monitoring. The sensor is compatible with a variety of mediums, including coolant, water, air, oil, and fuel, and comes with an M14 x 1.5 thread for easy installation. With its durable design, it is ideal for use in demanding environments and can be optionally paired with a warning contact for enhanced functionality.

Description
Ask a Question

VDO 323-801-001-054D - Coolant Temperature Sender 120°C - M14

Product Description

The VDO 323-801-001-054D is a precision-engineered coolant temperature sender designed for accurate monitoring in engine systems. It provides reliable performance for measuring coolant, water, air, engine oil, transmission oil, or fuel temperature, making it an essential component for automotive and industrial applications. Manufactured in Germany, this sensor ensures durability and efficiency in demanding environments.

Technical Specifications
- Temperature Range: +40 °C to +120 °C
- Operating Temperature: –40 °C to +150 °C
- Thread: M14 x 1.5 Male
- Sender Resistance Range: 287.4 - 22.7 Ohm
- Sensor Signal: Single-pole common ground
- Thread + Element Length (L): 29 mm
- Sensor Diameter: 9 mm
- Torque: 20 Nm
- Temperature Medium: Coolant, Water, Air, Engine Oil, Transmission Oil, Fuel
- Operating Voltage: 6 - 24 V DC
- Warning Contact: None (optional warning contact available with VDO A2C59510886)
Key Features
- Accurate temperature measurement range from +40 °C to +120 °C
- Single-pole common ground signal for reliable operation
- Durable design supporting mediums like coolant, oil, and fuel
- Compact size with M14 x 1.5 thread for easy installation
- Resistor range of 287.4 to 22.7 Ohm ensuring precise signal output
- Robust performance under extreme temperatures from –40 °C to +150 °C
- Compatible with VDO engine monitoring systems
- Optional warning contact available for enhanced functionality
Applications

Designed for engine monitoring systems, this temperature sender is suitable for measuring coolant, air, oil, or fuel temperatures in a wide range of automotive and industrial applications. Its analog signal output and durable design ensure consistent and accurate temperature data.

Packaging

Delivered in a secure VDO Sensor retail package for safe transport and storage.
