The VDO 232-011-020-022E is a temperature switch that has a switchpoint of 16 °C ± 3 °C and a maximum operating temperature of 120 °C. It is threaded with M14 x 1.5 and has a switch element length and thread of 29 mm and a sensor diameter of 10 mm. This temperature switch has an operating voltage range of 6 - 24 V DC and a single-pole common ground with a contact that opens when the temperature exceeds 16 °C. It also has a slow contact response and a maximum non-inductive capacity of 1.2 - 3 Watt. The temperature switch is equipped with a pin connector with a diameter of 4 mm.
- Description
- Ask a Question
-

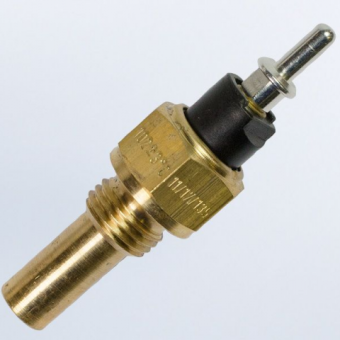

VDO 232-011-020-022E - Temperature Switch 16°C - M14
The VDO 232-011-020-022E is a versatile temperature switch with a switchpoint of 16 °C ± 3 °C. It has a maximum operating temperature of 120 °C and is threaded with M14 x 1.5. The switch element length and thread measure 29 mm, while the sensor diameter is 10 mm.
With an operating voltage range of 6 - 24 V DC, this temperature switch has a contact that opens when the temperature exceeds 16 °C. It also has a single-pole common ground and a slow contact response. The maximum capacity for non-inductive use is 1.2 - 3 Watt. The temperature switch is equipped with a pin connector with a diameter of 4 mm.
-
