This product is a temperature switch with a switchpoint of 195 °C and a maximum operating temperature of 250 °C. It operates on a voltage range of 6-24 V DC and has a slow contact response. The switch function closes when the temperature exceeds 195 °C.
- Description
- Ask a Question
-

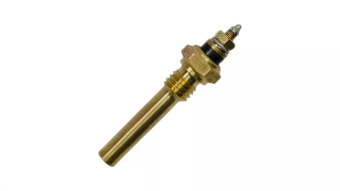

VDO 232-011-019-003D - Temperature Switch 195°C - M10
This product is a temperature switch that has a switchpoint of 195 °C ± 10 °C. It has a maximum operating temperature of 250 °C and uses an M10 X 1.5 thread. The switch element length + thread is 38.5 mm and the sensor diameter is 6.9 mm. It operates on a voltage range of 6 - 24 V DC and has a switch function that closes when the temperature goes above 195 °C. The temperature switch signal is a Single-Pole common ground and has a slow contact response. It has a capacity of 1.2 - 3 Watt non-inductive and uses an M4 Hex nut as its connector.
-
