The VDO 232-011-017-080D Temperature Switch operates at a switchpoint of 97°C ± 3°C with a maximum temperature limit of 120°C. It features an M14 x 1.5 thread, a sensor diameter of 10 mm, and a switch element length of 29 mm. It supports an operating voltage of 6 - 24 V DC, activates when temperatures exceed 97°C, and has a slow contact response with a maximum power capacity of 1.2 - 3 watts for non-inductive loads. The connector is an AMP Male 6.3 x 0.8 mm.
- Description
- Ask a Question
-

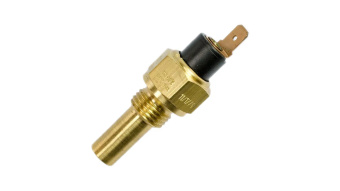

VDO 232-011-017-080D - Temperature Switch 97°C - M14
The VDO 232-011-017-080D Temperature Switch is designed to accurately monitor and control temperature. It has a switchpoint set at 97°C with a tolerance of ±3°C, ensuring precise temperature regulation.
This temperature switch features a maximum operating temperature of 120°C and is equipped with an M14 x 1.5 thread. The switch element has a length of 29 mm including the thread, while the sensor diameter is 10 mm.
Electrical specifications include an operating voltage range of 6 - 24 V DC. The switch function activates when the temperature exceeds 97°C, and it uses a single-pole common ground for the temperature switch signal. It is designed with a slow contact response and can handle a maximum power capacity of 1.2 - 3 watts for non-inductive loads.
The connector for this temperature switch is an AMP Male 6.3 x 0.8 mm type.
-
