The VDO 232-011-017-058D is a temperature switch that activates at 102°C with a ±6°C tolerance and operates up to 120°C. It features an M14 x 1.5 thread, a total length of 29 mm, and a sensor diameter of 10 mm. Designed for 6 - 24 V DC voltage, it has a single-pole common ground signal and a slow contact response, handling up to 1.2 - 3 watts of non-inductive load. The switch connects using an M4 screw with a ring terminal (2x).
- Description
- Ask a Question
-

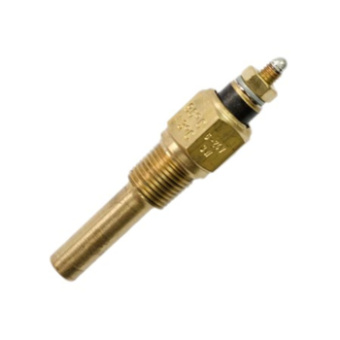

VDO 232-011-017-058D - Temperature Switch 102°C - M14
The VDO 232-011-017-058D is a precise temperature switch designed to activate at a set temperature of 102°C, with a tolerance of ±6°C. It can operate at temperatures up to 120°C, ensuring reliable performance in various conditions.
This switch features an M14 x 1.5 thread and has a total length of 29 mm, including the switch element and thread. The sensor diameter is 10 mm, making it compact and versatile for different applications.
Electrical specifications include an operating voltage range of 6 - 24 V DC. The switch closes its contact when the temperature exceeds 102°C. It is configured with a single-pole common ground temperature switch signal and has a slow contact response. The switch can handle a maximum of 1.2 - 3 watts in non-inductive loads. For connection, it uses an M4 screw with a ring terminal (2x).
-
