Introducing the VDO 224-082-007-014R - Ø54mm Fuel Tubular Sender with a tube length of 478.5 mm ± 2.0 mm, suitable for various fuels and operating temperatures ranging from -25 °C to +65 °C. This sender features a 5-Hole SAE 54 mm mounting flange and operates at an electrical voltage of 6 - 24 V DC, with resistance values for empty and full states.
- Description
- Ask a Question
-

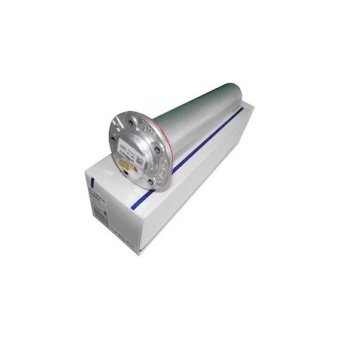

VDO 224-082-007-014R - Ø54mm Fuel Tubular Sender 478.5mm
Introducing the VDO 224-082-007-014R - Ø54mm Fuel Tubular Sender, a reliable and versatile component for your fuel system.
- Tube length: 478.5 mm ± 2.0 mm
- Minimum tank depth: 478.5 mm ± 2.0 mm + 4.0 mm
- Support spring: None
- Mounting flange: 5-Hole SAE 54 mm
- Operating temperature: -25 °C to +65 °C
- Fuel: Oil - petroleum - diesel - gasoline
Electrical features:
- Operating voltage: 6 - 24 V DC
- Resistance empty: 85.8 Ohm ± 1.8 Ohm
- Resistance full: 0.8 Ohm ± 0.4 Ohm
-
