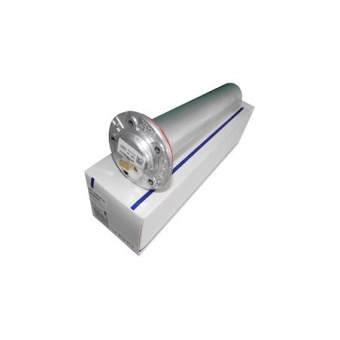

VDO 224-082-005-028R - Ø54mm Fuel Tubular Sender 613.5mm

Article VDO.224082005028R

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 224-082-005-028R is a fuel tubular sender with a 613.5 mm length and a 5-Hole SAE 54 mm mounting flange, suitable for tanks with a minimum depth of 617.5 mm. It operates between -25 °C and +65 °C and works with oil, petroleum, diesel, and gasoline. The device supports 6 - 24 V DC and has a resistance of 76.3 Ohm ± 2.3 Ohm when empty and 1.0 Ohm ± 1.0 Ohm when full.

Description
Ask a Question

VDO 224-082-005-028R - Ø54mm Fuel Tubular Sender 613.5mm

Introducing the VDO 224-082-005-028R fuel tubular sender, designed to accurately measure fuel levels in various applications. This sender is ideal for use in vehicles and equipment that require precise fuel monitoring.

The tube length of the sender is 613.5 mm, with a tolerance of ± 2.0 mm. It is suitable for tanks with a minimum depth of 613.5 mm ± 2.0 mm, plus an additional 4.0 mm. This model does not include a support spring and features a 5-Hole SAE 54 mm mounting flange. It operates efficiently within a temperature range of -25 °C to +65 °C.

The VDO 224-082-005-028R is compatible with various fuels including oil, petroleum, diesel, and gasoline. Its electrical specifications include an operating voltage range of 6 - 24 V DC. The resistance values are 76.3 Ohm ± 2.3 Ohm when empty and 1.0 Ohm ± 1.0 Ohm when full.
