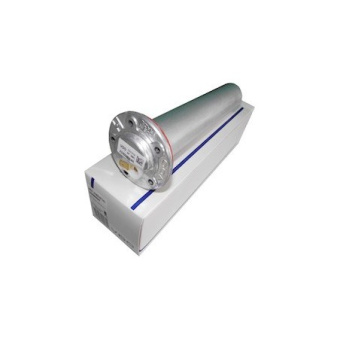

VDO 224-011-120-596G - Ø54mm Fuel Tubular Sender 596.5mm

Article VDO.224011120596G

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 224-011-120-596G is a fuel tubular sender with a 596.5 mm tube length, designed for tanks with a minimum depth of 596.5 mm ± 2.0 mm plus an additional 4.0 mm. It features a 21 mm support spring, a 5-Hole SAE 54 mm mounting flange, and operates within a temperature range of -25 °C to +65 °C. Suitable for various fuels including oil, petroleum, diesel, and gasoline, it functions on 6 - 24 V DC and provides resistance measurements of 74.1 Ohms ± 2.3 Ohms when empty and 1.0 Ohm ± 1.0 Ohm when full.

Description
Ask a Question

VDO 224-011-120-596G - Ø54mm Fuel Tubular Sender 596.5mm

The VDO 224-011-120-596G is a precision fuel tubular sender designed for accurate measurement and reliable performance in various fuel applications. With a tube length of 596.5 mm, this sender ensures compatibility with a range of tank depths, providing versatility for different fuel systems.

The sender features a minimum tank depth requirement of 596.5 mm ± 2.0 mm, plus an additional 4.0 mm to accommodate different configurations. It is equipped with a 21 mm support spring and a 5-Hole SAE 54 mm mounting flange, making installation straightforward and secure.

Engineered to operate efficiently in temperatures ranging from -25 °C to +65 °C, this sender is suitable for various environmental conditions. It is compatible with different types of fuel including oil, petroleum, diesel, and gasoline.

In terms of electrical specifications, the sender operates on a voltage range of 6 - 24 V DC. It has a resistance of 74.1 Ohms ± 2.3 Ohms when empty and 1.0 Ohm ± 1.0 Ohm when full, ensuring precise fuel level readings.
