Article
VDO.224011010691G
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Our managers will contact you and clarify the terms of the order
The VDO 224-011-010-691G is a high-precision fuel tubular sender with a 691.5 mm tube length, designed for accurate fuel level measurements across various fuel types, including oil, diesel, and gasoline. It features a 5-hole SAE 54 mm mounting flange, operates at temperatures between -25 °C and +65 °C, and supports 6-24 V DC. With a resistance of 66.5 Ohms when empty and 1.0 Ohm when full, this sender is reliable and well-suited for diverse industrial applications.
- Description
- Ask a Question
-

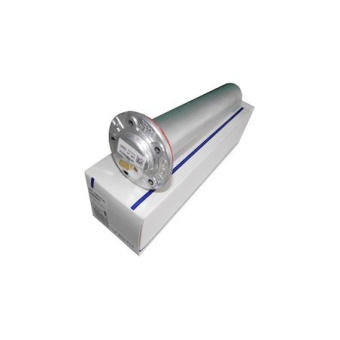

VDO 224-011-010-691G - Ø54mm Fuel Tubular Sender 691.5mm
The VDO 224-011-010-691G is a precision-engineered fuel tubular sender designed to deliver accurate fuel level measurements. This sender is suitable for various fuel types, including oil, petroleum, diesel, and gasoline, and is built to withstand a wide range of operating conditions. Whether you're working with industrial machinery, vehicles, or other equipment, this fuel sender is a reliable choice.
Key specifications include a tube length of 691.5 mm (± 2.0 mm) and a minimum tank depth of 691.5 mm (± 2.0 mm) plus an additional 4.0 mm. The sender does not require a support spring and features a 5-hole SAE 54 mm mounting flange. It operates effectively within a temperature range of -25 °C to +65 °C, making it suitable for various environments.
In terms of electrical characteristics, the sender supports an operating voltage of 6 to 24 V DC. The resistance values are well-defined, with 66.5 Ohms (± 2.1 Ohms) when empty and 1.0 Ohm (± 1.0 Ohm) when full, ensuring consistent and precise readings.
-
