The VDO 224-011-010-478G is a fuel tubular sender designed for accurate fuel level measurement, featuring a tube length of 478.5 mm ± 2.0 mm, a 5-hole SAE 54 mm mounting flange, and an operating temperature range of -25 °C to +65 °C. It supports fuels such as oil, petroleum, diesel, and gasoline, with an operating voltage of 6 - 24 V DC. The sender's resistance ranges from 85.9 Ohm ± 2.5 Ohm when empty to 1.0 Ohm ± 1.0 Ohm when full.
- Description
- Ask a Question
-

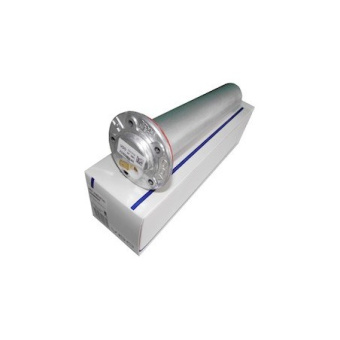

VDO 224-011-010-478G - Ø54mm Fuel Tubular Sender 478.5mm
The VDO 224-011-010-478G is a fuel tubular sender designed for precision and durability in fuel level measurement systems. Below are the technical specifications for this component:
- Model: 224-011-010-478G
- Tube Length: 478.5 mm ± 2.0 mm
- Minimum Tank Depth: 478.5 mm ± 2.0 mm + 4.0 mm
- Support Spring: None
- Mounting Flange: 5-Hole SAE 54 mm
- Operating Temperature: -25 °C to +65 °C
- Compatible Fuels: Oil, Petroleum, Diesel, Gasoline
- Electrical Features:
- Operating Voltage: 6 - 24 V DC
- Resistance (Empty): 85.9 Ohm ± 2.5 Ohm
- Resistance (Full): 1.0 Ohm ± 1.0 Ohm
-
