The VDO 224-011-010-463G is a highly accurate fuel tubular sender with a tube length of 463.5 mm, designed for use with oil, petroleum, diesel, and gasoline. It operates within a temperature range of -25 °C to +65 °C and features a 5-hole SAE 54 mm mounting flange. The sender functions at 6-24 V DC, with resistance values of 83.0 Ohm when empty and 1.0 Ohm when full, making it suitable for reliable fuel level measurement in various applications.
- Description
- Ask a Question
-

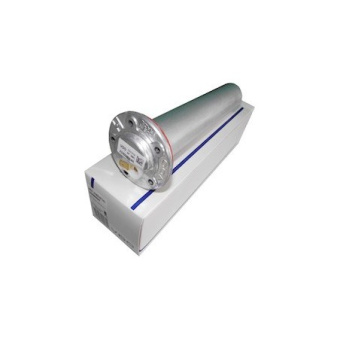

VDO 224-011-010-463G - Ø54mm Fuel Tubular Sender 463.5mm
The VDO 224-011-010-463G is a precision-engineered fuel tubular sender designed for a wide range of petroleum-based fuels, including oil, diesel, and gasoline. Built for reliability and accuracy, it is suitable for various applications where monitoring fuel levels is essential.
Key Specifications:
- Tube Length: 463.5 mm ± 2.0 mm
- Minimum Tank Depth: 463.5 mm ± 2.0 mm + 4.0 mm
- Support Spring: None
- Mounting Flange: 5-Hole SAE 54 mm
- Operating Temperature: -25 °C to +65 °C
- Compatible Fuels: Oil, petroleum, diesel, gasoline
Electrical Features:
- Operating Voltage: 6 - 24 V DC
- Resistance (Empty): 83.0 Ohm ± 2.5 Ohm
- Resistance (Full): 1.0 Ohm ± 1.0 Ohm
-
