Introducing the VDO 224-011-010-433G - Ø54mm Fuel Tubular Sender 433.5mm with tube length of 433.5 mm, support spring none, 5-Hole SAE 54 mm mounting flange, operating temperature range of -25 °C to +65 °C, suitable for oil, petroleum, diesel, and gasoline fuels, operating voltage of 6 - 24 V DC, and optional warning contact VDO A2C59510886 Makepoint Switch.
- Description
- Ask a Question
-

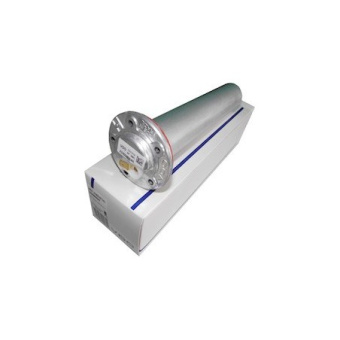

VDO 224-011-010-433G - Ø54mm Fuel Tubular Sender
Fuel Tubular Sender with tube length of 433.5 mm.
- Tube length: 433.5 mm ± 2.0 mm
- Minimum tank depth: 433.5 mm ± 2.0 mm + 4.0 mm
- Support spring: None
- Mounting flange: 5-Hole SAE 54 mm
- Operating temperature: -25 °C to +65 °C
- Fuel: Oil - petroleum - diesel - gasoline
Electrical features:
- Operating voltage: 6 - 24 V DC
- Resistance empty: 77.3 Ohm ± 2.3 Ohm
- Resistance full: 1.0 Ohm ± 1.0 Ohm
Optional warning contact: VDO A2C59510886 Makepoint Switch
-
