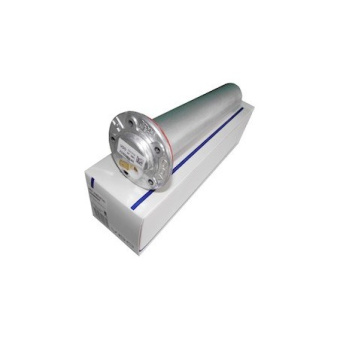

VDO 224-011-010-251G - Ø54mm Fuel Tubular Sender 251mm

Article VDO.224011010251G

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 224-011-010-251G is a Ø54mm Fuel Tubular Sender with a tube length of 251 mm ± 2.0 mm, suitable for tanks with a minimum depth of 251 mm ± 2.0 mm + 4.0 mm. It features a 5-Hole SAE 54 mm mounting flange and operates in temperatures from -25 °C to +65 °C, compatible with oil, petroleum, diesel, and gasoline. Electrical specifications include an operating voltage of 6 - 24 V DC, empty resistance of 62.5 Ohm ± 2.1 Ohm, full resistance of 2.0 Ohm ± 1.0 Ohm, and an optional warning contact with the VDO A2C59510886 Makepoint Switch.

Description
Ask a Question

VDO 224-011-010-251G - Ø54mm Fuel Tubular Sender 251mm
The VDO 224-011-010-251G is a Ø54mm Fuel Tubular Sender with a tube length of 251 mm ± 2.0 mm. It is designed for tanks with a minimum depth of 251 mm ± 2.0 mm + 4.0 mm. This sender features a 5-Hole SAE 54 mm mounting flange and can operate in temperatures ranging from -25 °C to +65 °C. It is suitable for use with oil, petroleum, diesel, and gasoline fuels.

Electrical features of the VDO 224-011-010-251G include an operating voltage of 6 - 24 V DC, an empty resistance of 62.5 Ohm ± 2.1 Ohm, and a full resistance of 2.0 Ohm ± 1.0 Ohm. Additionally, it offers an optional warning contact with the VDO A2C59510886 Makepoint Switch.
