The VDO 224-011-000-340G is a Ø54mm Fuel Tubular Sender with a tube length of 340 mm ± 2.0 mm, suitable for various fuels and operating within a temperature range of -25 °C to +65 °C. It features a 5-Hole SAE 54 mm mounting flange and optional warning contact capability with the VDO A2C59510886 Makepoint Switch.
- Description
- Ask a Question
-

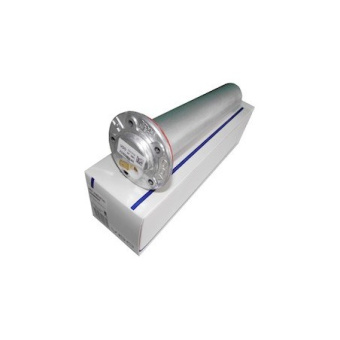

VDO 224-011-000-340G - Ø54mm Fuel Tubular Sender 340mm
The VDO 224-011-000-340G is a Ø54mm Fuel Tubular Sender with a tube length of 340 mm ± 2.0 mm. It is designed for a minimum tank depth of 340 mm ± 2.0 mm + 4.0 mm and features a 5-Hole SAE 54 mm mounting flange. This sender is suitable for use with oil, petroleum, diesel, and gasoline fuels.
The operating temperature range of this sender is -25 °C to +65 °C. It operates at an input voltage of 6 to 24 V DC and has an empty resistance of 74.0 Ohm ± 2.5 Ohm, and a full resistance of 2.5 Ohm ± 1.5 Ohm. Additionally, it can be equipped with an optional warning contact, the VDO A2C59510886 Makepoint Switch.
-
