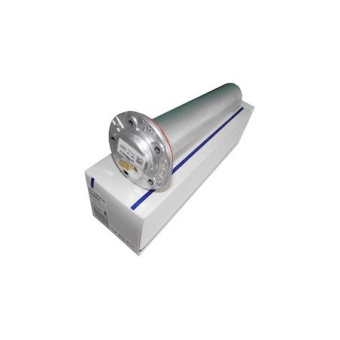

VDO 224-011-000-230G - Ø54mm Fuel Tubular Sender 230mm

Article VDO.224011000230G

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 224-011-000-230G - Ø54mm Fuel Tubular Sender 230mm is a precise and reliable fuel sender with a tube length of 230mm and a minimum tank depth of 230mm + 4.0mm. It operates in temperatures from -25°C to +65°C, suitable for oil, petroleum, diesel, and gasoline, with resistance values of 84.0 Ohm when empty and 2.5 Ohm when full.

Description
Ask a Question

VDO 224-011-000-230G - Ø54mm Fuel Tubular Sender 230mm
The VDO 224-011-000-230G - Ø54mm Fuel Tubular Sender 230mm is a high-quality fuel sender designed for precise fuel level measurement in various tanks. With a tube length of 230 mm ± 2.0 mm and a minimum tank depth of 230 mm ± 2.0 mm + 4.0 mm, this sender ensures accurate readings. It features a 5-Hole SAE 54 mm mounting flange and can operate in temperatures ranging from -25 °C to +65 °C. Compatible with oil, petroleum, diesel, and gasoline, this sender has an operating voltage of 6 - 24 V DC. The resistance values are 84.0 Ohm ± 2.5 Ohm when empty and 2.5 Ohm ± 1.5 Ohm when full. It does not have a warning contact but can be paired with the VDO A2C59510886 Makepoint Switch as an optional feature.
