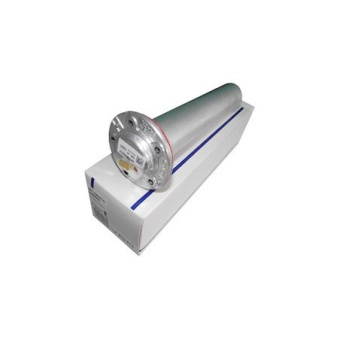

VDO 224-011-000-150G - Ø54mm Fuel Tubular Sender 150mm

Article VDO.224011000150G

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 224-011-000-150G is a Ø54mm Fuel Tubular Sender with a tube length of 150 mm. It is suitable for tanks with a minimum depth of 150 mm + 4.0 mm, featuring a 5-Hole SAE 54 mm mounting flange and operating in temperatures from -25 °C to +65 °C. Compatible with oil, petroleum, diesel, and gasoline, it operates at 6 - 24 V DC with an empty resistance of 69.0 Ohm and a full resistance of 4.5 Ohm.

Description
Ask a Question

VDO 224-011-000-150G - Ø54mm Fuel Tubular Sender 150mm
The VDO 224-011-000-150G is a Ø54mm Fuel Tubular Sender with a tube length of 150 mm ± 2.0 mm. It is designed for tanks with a minimum depth of 150 mm ± 2.0 mm + 4.0 mm. This sender does not require a support spring and features a 5-Hole SAE 54 mm mounting flange. It can operate in temperatures ranging from -25 °C to +65 °C and is compatible with oil, petroleum, diesel, and gasoline. In terms of electrical specifications, it operates at an voltage range of 6 - 24 V DC, with an empty resistance of 69.0 Ohm ± 2.5 Ohm and a full resistance of 4.5 Ohm ± 1.5 Ohm.
