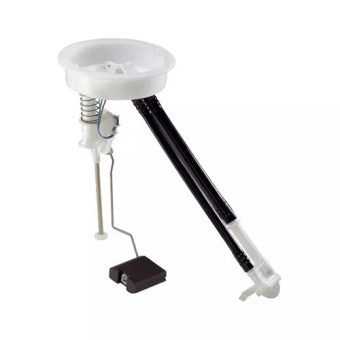

VDO 221-824-043-002Z - Fuel Level Sender

VDO 221-824-043-002Z - Fuel Level Sender

The VDO 221-824-043-002Z Fuel Level Sender is an advanced component designed for precision and reliability in monitoring fuel levels within the tank. This sender unit utilizes a float arm mechanism that provides real-time and accurate readings, ensuring optimal vehicle operation. Manufactured by VDO, a global leader in automotive technology, this sender is built to withstand rigorous use, making it a trusted choice for BMW owners.

Key Features

• Precision-engineered float arm mechanism for consistent and accurate fuel level monitoring.
• Constructed with corrosion-resistant stainless steel and reinforced composite materials for durability in harsh environments.
• High sensitivity sensor for improved accuracy, even in tanks with complex shapes or baffles.
• Integrated gasket for leak-proof mounting and reliable operation.
• Pre-calibrated resistance range for seamless integration with vehicle electronics.
• Compact design, allowing compatibility with a wide range of BMW fuel tanks.
• Designed to function efficiently under extreme temperature conditions.

Specifications

• Type: Fuel Level Float Arm Sender Unit
• Length: 260 mm (float arm)
• Material: Stainless steel (arm and mounting base), composite plastic (float)
• Resistance Range: 10 Ohms (empty) to 180 Ohms (full)
• Connector Type: 2-pin weatherproof electrical connector
• Mounting Type: 5-hole SAE flange with integrated sealing gasket
• Electrical Output: Analog signal with linear resistance output
• Operating Voltage: 12V DC (compatible with standard automotive systems)
• Operating Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Fluid Compatibility: Compatible with gasoline, diesel, and ethanol blends
• IP Rating: IP67 (dust-tight and protected against temporary water immersion)
• Weight: 0.48 kg (1.06 lbs)
• Dimensions: 260 mm (L) x 50 mm (W) x 100 mm (H)
• Calibration: Factory calibrated for BMW fuel tank specifications

Compatibility and Application

This fuel level sender is engineered specifically for BMW vehicles, ensuring a precise fit and reliable operation. It is compatible with various BMW models that utilize a 260 mm fuel tank sender unit. The unit's design ensures proper integration with the vehicle's existing fuel tank and dashboard instrumentation, maintaining accurate fuel level monitoring even in challenging driving conditions.

Benefits

• Enhanced Accuracy: Provides exact fuel level readings to avoid unexpected refueling stops.
• Durable Construction: Designed to withstand vibrations, temperature fluctuations, and exposure to fuel vapors.
• Cost-Effective: Reliable long-term performance minimizes the need for replacements.
• Easy Installation: Direct replacement with OEM-style mounting for reduced installation time and effort.
• Improved Safety: Accurate readings help drivers manage fuel efficiently, reducing risks associated with running out of fuel.
• Environmentally Friendly: Resistant to leaks and spills, reducing environmental impact.
