SKU:
EX PVS00030
€ 11,13
1-2 weeks delivery time
-
+
The Weidmüller Solar Connector Set (PVS00030) is a robust and efficient solution for solar energy applications, featuring one female and one male connector. Designed for durability with a nominal voltage of 1000 volts and amperage of 30, it has a low resistance of less than 5 mΩ and operates within a temperature range of -40℃ to +85℃. With an IP65 rating for water and dust protection and made from high-quality materials, this connector is suitable for various installations, including agricultural use, thanks to its ammonia resistance and multiple safety certifications including TÜV, CE, KEMA, and UL.
- Description
- Ask a Question
-

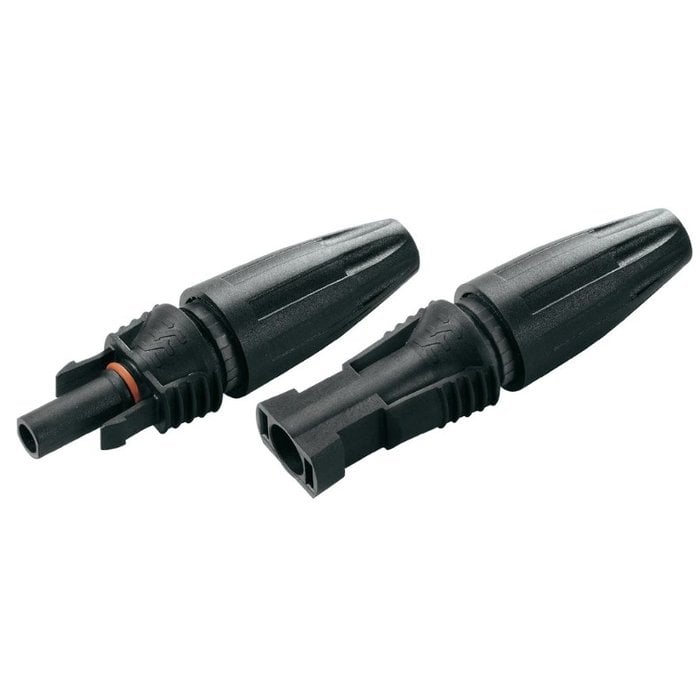

Weidmüller Solar Connector/Set 1x Female 1x Male PVS00030
The Weidmüller Solar Connector Set combines durability and efficiency, designed to perform reliably in solar energy applications. This connector set includes one female and one male connector, ideal for establishing secure connections in various installations.
- Product Number: PVS00030
- Nominal Voltage: 1000 volts (IEC/CEI)
- Nominal Amperage: 30 Amperes (4 mm² / 6 mm²)
- Resistance: ≦ 5 mΩ
- IP Rating: IP65
- Temperature Range: -40℃ to +85℃
- Insulation Material: PC/PA
- Contact Material: Copper, silver-plated (EpAg 5~8)
- Locking System: Snap lock
- Safety Class: 2
- Safety Certification: TÜV (DIN EN 50521), CE, KEMA, UL, RoHS
- Ammonia Resistance: PPM-25 (suitable for agriculture)
-
