SKU:
EX PVS00010
€ 5,56
1-2 weeks delivery time
-
+
The Weidmüller Solar Connector (Male) PVS00010 is engineered for superior performance and durability in solar energy applications. It features a nominal voltage of 1000 volts and a nominal amperage of 30 Amperes, suitable for 4 mm² and 6 mm² cables. With an IP65 rating, it operates effectively in harsh environments and has a wide temperature range of -40℃ to +85℃. Made from high-quality materials including copper and silver-plated contacts, it includes a snap closure system and has multiple safety certifications such as TÜV and UL. Additionally, it is resistant to ammonia, making it ideal for use in livestock farming.
- Description
- Ask a Question
-

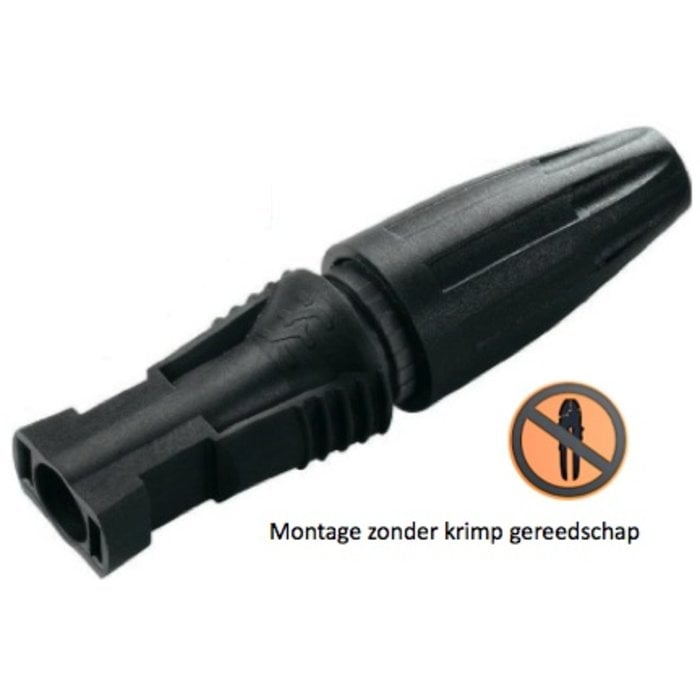

Weidmüller Solar Connector/Plug (Male) PVS00010
The Weidmüller Solar Connector is designed for optimal performance and durability in solar energy applications. This high-quality connector ensures reliable connections, facilitating efficient energy transfer in various environments.
- Nominal Voltage: 1000 volts (IEC/CEI)
- Nominal Amperage: 30 Amperes (for 4 mm² / 6 mm² cables)
- Resistance: ≦5Ω
- IP Rating: IP65
- Temperature Range: -40℃ to +85℃
- Insulation Material: PC/PA
- Contact Material: Copper, silver-plated (EpAg5~8)
- Closure System: Snap closure
- Safety Class: 2
- Safety Certification: TÜV (DIN EN 50521) CE, KEMA, UL, RoHS
- Resistance to Ammonia: PPM-25 (suitable for livestock farming)
-
