SKU:
EX PVS00020
€ 5,56
1-2 weeks delivery time
-
+
The Weidmüller Solar Connector/Coupling (Female) PVS00020 is a reliable coupling solution for solar applications, designed to offer optimal performance and safety across various environmental conditions. It features a nominal voltage of 1000 volts, nominal amperage of 30 Amperes, and a resistance of less than or equal to 5Ω. With an IP65 rating, it operates effectively within a temperature range of -40℃ to +85℃. Constructed with durable PC/PA insulation and silver-plated copper contacts, it includes a snap closure locking system and meets safety standards such as TÜV, CE, KEMA, UL, and RoHS, while also demonstrating ammonia resistance suitable for livestock farming.
- Description
- Ask a Question
-

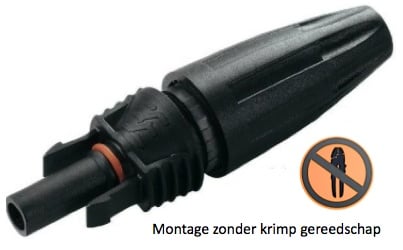

Weidmüller Solar Connector/Coupling (Female) PVS00020
The Weidmüller Solar Connector is a reliable and efficient coupling solution for solar applications. With robust materials and excellent specifications, it ensures optimal performance and safety in various environmental conditions.
- Nominal Voltage: 1000 volts (IEC/CEI)
- Nominal Amperage: 30 Amperes (4 mm² / 6 mm²)
- Resistance: ≦5Ω
- IP Rating: IP65
- Temperature Range: -40℃ / +85℃
- Insulation Material: PC/PA
- Contact Material: Copper, silver-plated (EpAg5~8)
- Locking System: Snap closure
- Safety Class: 2
- Safety Certification: TÜV (DIN EN 50521), CE, KEMA, UL, RoHS
- Ammonia Resistance: PPM-25 (suitable for livestock farming)
-
