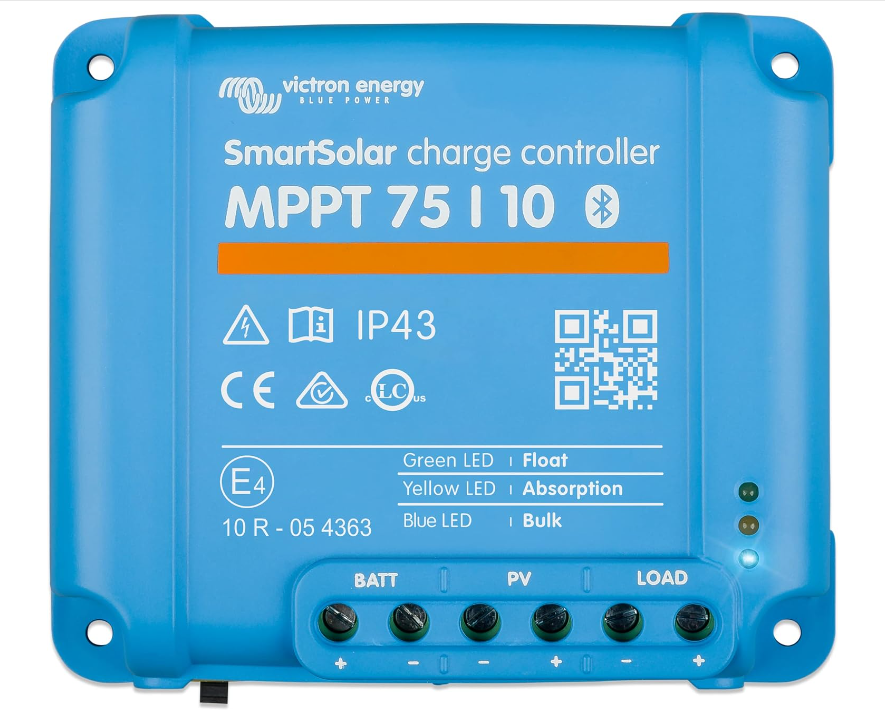

Victron SmartSolar MPPT Charge Controllers

€ 74,05

1-2 weeks delivery time
Price incl. 19% VAT

Type:

75/10
75/15
100/15
100/20
100/30
100/50
150/35
150/45
150/60-Tr
150/60-MC4
150/70-Tr
150/70-Tr VE.Can
150/70-MC4 VE.Can
150/85-Tr VE.Can
150/85-MC4 VE.Can
150/100-Tr VE.Can
150/100-MC4 VE.Can
250/60-Tr
250/60-MC4
250/70-Tr
250/70-Tr VE.Can
250/70-MC4 VE.Can
250/85-Tr VE.Can
250/85-MC4 VE.Can
250/100-Tr VE.Can
250/100-MC4 VE.Can

Victron SmartSolar MPPT charge controllers are advanced solar regulators with ultra-fast Maximum Power Point Tracking, available from 75V/10A up to 250V/100A. With automatic battery voltage recognition (12V, 24V, 36V, 48V), built-in Bluetooth, and remote access via VictronConnect and VRM, they optimize solar harvest even in variable light conditions. Models include MC4 or TR connections and optional VE.Can interface for system integration. Ideal for off-grid solar, marine, camper, and industrial battery charging applications.

Description
Ask a Question

Victron Energy SmartSolar MPPT Charge Controllers are cutting-edge solar regulators designed to extract the maximum energy from your solar panels and deliver it efficiently to your battery banks. With models supporting up to 250V and 100A, SmartSolar controllers are suited for small-scale as well as high-performance off-grid systems.

Core Features:

MPPT – Ultra-Fast Maximum Power Point Tracking ensures optimal energy harvest in all light conditions
Built-in Bluetooth for local monitoring and configuration via VictronConnect app
VE.Can enabled models allow system-wide communication and control
Recharges deeply discharged batteries (battery voltage as low as 0V if not damaged)
Fully programmable charge parameters for different battery chemistries
Compatible with VRM Portal for global remote access (with GX device)
Available with TR terminals or MC4 connectors for easy integration

Available Models:

Model	Voltage / Current	Connectors	VE.Can	Part Number
SmartSolar MPPT 75/10	75V / 10A	Terminal	No	SCC075010060R
SmartSolar MPPT 75/15	75V / 15A	Terminal	No	SCC075015060R
SmartSolar MPPT 100/15	100V / 15A	Terminal	No	SCC110015060R
SmartSolar MPPT 100/20	100V / 20A	Terminal	No	SCC110020160R
SmartSolar MPPT 100/30	100V / 30A	Terminal	No	SCC110030210
SmartSolar MPPT 100/50	100V / 50A	Terminal	No	SCC110050210
SmartSolar MPPT 150/35	150V / 35A	Terminal	No	SCC115035210
SmartSolar MPPT 150/45	150V / 45A	Terminal	No	SCC115045212
SmartSolar MPPT 150/60-Tr	150V / 60A	Terminal	No	SCC115060211
SmartSolar MPPT 150/60-MC4	150V / 60A	MC4	No	SCC115060311
SmartSolar MPPT 150/70-Tr	150V / 70A	Terminal	No	SCC115070211
SmartSolar MPPT 150/70-Tr VE.Can	150V / 70A	Terminal	Yes	SCC115070411
SmartSolar MPPT 150/70-MC4 VE.Can	150V / 70A	MC4	Yes	SCC115070511
SmartSolar MPPT 150/85-Tr VE.Can	150V / 85A	Terminal	Yes	SCC115085411
SmartSolar MPPT 150/85-MC4 VE.Can	150V / 85A	MC4	Yes	SCC115085511
SmartSolar MPPT 150/100-Tr VE.Can	150V / 100A	Terminal	Yes	SCC115110411
SmartSolar MPPT 150/100-MC4 VE.Can	150V / 100A	MC4	Yes	SCC115110511
SmartSolar MPPT 250/60-Tr	250V / 60A	Terminal	No	SCC125060221
SmartSolar MPPT 250/60-MC4	250V / 60A	MC4	No	SCC125060321
SmartSolar MPPT 250/70-Tr	250V / 70A	Terminal	No	SCC125070221
SmartSolar MPPT 250/70-Tr VE.Can	250V / 70A	Terminal	Yes	SCC125070421
SmartSolar MPPT 250/70-MC4 VE.Can	250V / 70A	MC4	Yes	SCC125070521
SmartSolar MPPT 250/85-Tr VE.Can	250V / 85A	Terminal	Yes	SCC125085411
SmartSolar MPPT 250/85-MC4 VE.Can	250V / 85A	MC4	Yes	SCC125085511
SmartSolar MPPT 250/100-Tr VE.Can	250V / 100A	Terminal	Yes	SCC125110412
SmartSolar MPPT 250/100-MC4 VE.Can	250V / 100A	MC4	Yes	SCC125110512

Technical Highlights:

Battery Voltage Range: Automatic detection for 12V / 24V / 36V / 48V
PV Voltage (Voc): Up to 75V, 100V, 150V, or 250V depending on model
Max. Charge Current: 10A to 100A depending on model
Efficiency: Up to 98%
Protection: Over-temperature, short circuit, reverse polarity
Operating Temp: -30°C to +60°C (derates at high temps)

Use Cases:

Off-grid solar systems
Marine and boat battery systems
Remote cabins, RVs, and caravans
Telecom and industrial DC applications

With Victron SmartSolar MPPT controllers, your solar charging system becomes faster, more intelligent, and fully connected — ensuring safe and efficient battery management under any conditions.
