€ 35,90
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Type:
- 20W-12V
- 30W-12V
- 90W-12V
- 60W-12V
- 115W-12V
- 175W-12V
- 280W-20V
- 330W-24V
Size, mm:
- 440×350×25
- 545×668×25
- 780×668×30
- 1980×1002×40
- 665×350×25
- 1030x668x30
- 1485x668×30
- 1640x992x35

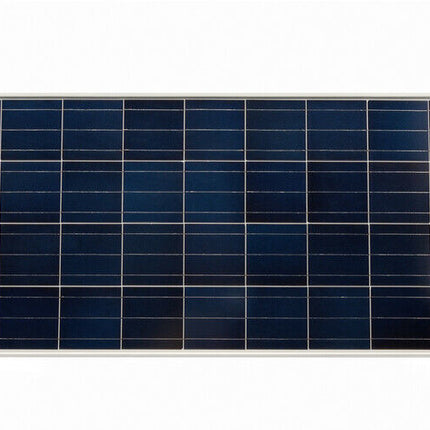

Victron BlueSolar Polycrystalline panels deliver reliable solar performance with nominal power ratings from 20W to 330W and 12V to 24V configurations. Designed with high-transmission tempered glass, MC4-compatible connectors (for higher wattages), anodized aluminium frames, and superior low-light sensitivity. Backed by a 25-year power output warranty and 5-year material warranty.
- Description
- Ask a Question
-
Victron BlueSolar Polycrystalline Panels are built to offer robust, cost-effective solar power for marine and off-grid applications. Their polycrystalline cells ensure good performance even in low-light conditions, while durable construction and high-quality components support long-term reliability.
Key Features:
- Low voltage-temperature coefficient improves performance in high temperatures
- Exceptional low-light performance and high sensitivity across the entire solar spectrum
- Sealed, waterproof, multi-functional junction box for enhanced safety
- High-performance bypass diodes to minimize power loss due to shading
- Advanced EVA encapsulation system with triple-layer back sheet for high-voltage safety
- Sturdy anodized aluminium frame for easy roof or deck mounting
- Tempered high-transmission glass for impact resistance and structural rigidity
- Pre-wired with MC4 (PV-ST01) connectors on high-power models
Electrical Specifications (STC):
Model Power (W) Voltage (V) Current (A) Size (mm) Weight (kg) SPP040201200 20 18.4 1.09 440×350×25 1.9 SPP040301200 30 18.2 1.66 665×350×25 2.8 SPP040451200 45 19.1 2.36 545×668×25 3.1 SPP040601200 60 19.3 3.12 545×668×25 4.0 SPP040901200 90 19.5 4.61 780×668×30 6.1 SPP041151202 115 18.9 6.08 1030×668×30 8.0 SPP041751200 175 18.3 9.56 1485×668×30 12.0 SPP042702000 270 31.7 8.52 1640×992×35 18.4 SPP042802000 280 31.9 8.77 1650×992×35 18.4 SPP043302402 330 37.3 8.86 1980×1002×40 23.0
Environmental & Mechanical Ratings:
- Operating temperature: -40°C to +85°C
- Max system voltage: 1000V
- Surface load capacity: 200 kg/m²
- Hail resistance: 23 m/s, 7.53 g hailstone
- Output tolerance: ±3%
- Frame: Anodized aluminium
Warranty:
- 5-year product warranty
- 10-year warranty for 90% power output
- 25-year warranty for 80% power output
Note: MC4 connectors and 900mm cables are standard on high-power models.
Documents
Victron BlueSolar Polycrystalline Panels Size: 155,6 Kb -
